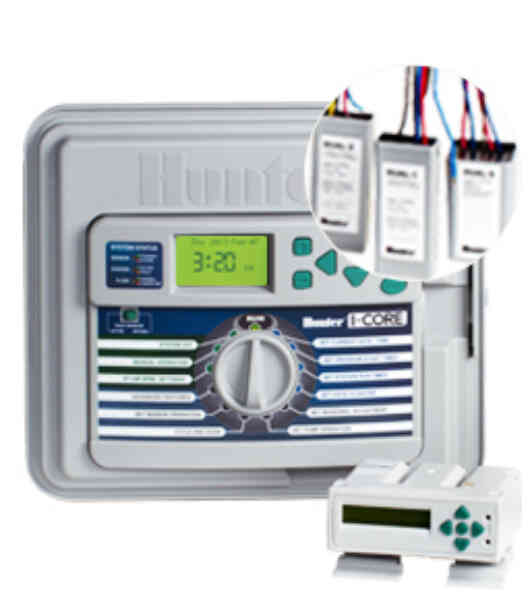

DUAL® for I-Core

Save materials and labour by adding this optional plug-in module to upgrade conventional I-Core™ systems to two-wire control.
Save materials and labour by adding this optional plug-in module to upgrade conventional I-Core™ systems to two-wire control.

Specifications

  • Number of Stations: 1 to 48
  • Type: Modular Decoder

Features

DUAL is Hunter’s innovative two-wire plug-in for the I-Core controller. Designed to bring the convenience and efficiency of two-wire technology to all, the DUAL system can operate up to 48 zones via a single pair of wires, at distances up to 2.3 km. The 48 zones can all be installed on a single path, or divided over multiple paths to take advantage of pipe trenches. Because it only requires two wires, DUAL offers unmatchable savings in labor, wire, and money. Since it’s I-Core compatible, system operators still receive advanced features and benefits like flow monitoring, quick system overview access, a factory-installed SmartPort®, six language capability, and a bold, graphic display. Dual decoders come in one and two-station versions. Aptly named Dual-1 and Dual-2, the decoder choices ensure any I-Core Dual system is customizable to the needs of any installation.

Key Benefits

  • 3 separate two-wire paths provide flexibility in system design and installation
  • 1- and 2-station decoders available for use with a variety of valve manifolds
  • Field-programmable decoders do not require serial numbers:
    • Decoders can be programmed before installation at the DUAL48M interface
    • Wireless programming with ICD-HP allows for decoder programming or re-programming after installation to the two-wire path
  • DUAL-S external surge protection module provides additional protection
  • DUAL48M output module displays decoder programming, operation, and diagnostic information for assistance with maintenance and troubleshooting
  • DUAL48M may be installed with conventional modules for hybrid operations
  • Solenoid finder feature aids in locating decoders and valves in the field
