EZ Decoder System

Bring two-wire technology to more projects than ever before with the revolutionary, low-cost, hassle-free EZ Decoder System for HCC, ICC2, and Pro-C controllers.
Bring two-wire technology to more projects than ever before with the revolutionary, low-cost, hassle-free EZ Decoder System for HCC, ICC2, and Pro-C controllers.

Specifications

  • Number of Stations: 54 or 28
  • Type: Modular Decoder
  • Platform: HCC, ICC2, or Pro-C

Features

Cost and complexity have often limited decoder technology to higher-end systems. However, with the revolutionary EZ Decoder System (EZDS), you get all the advantages of two-wire installations with simpler, more cost-effective technology — so you can bring the power of two-wire control to more projects than ever before.

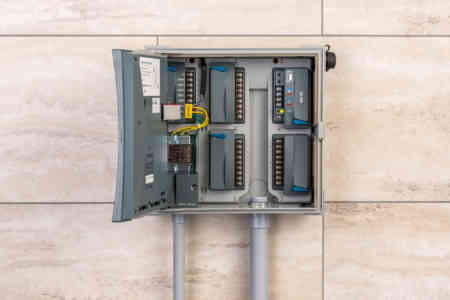

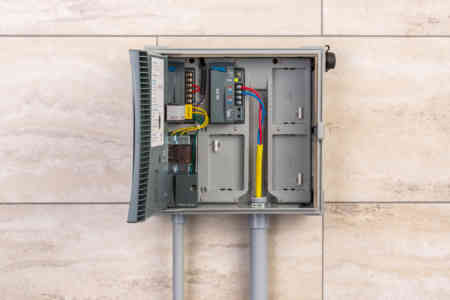

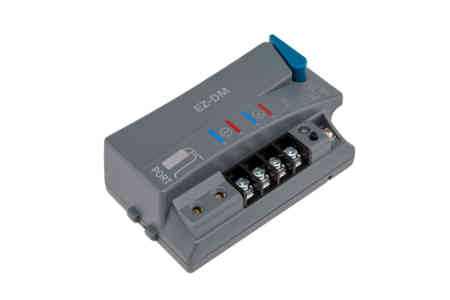

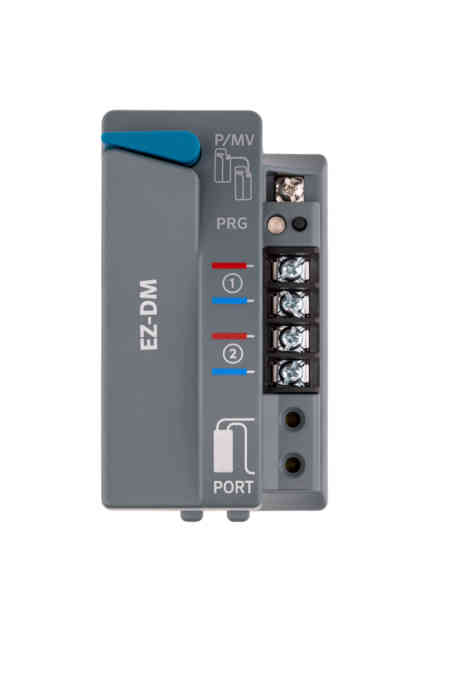

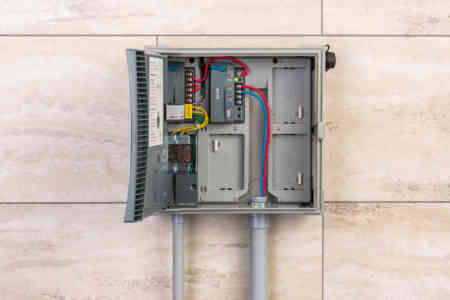

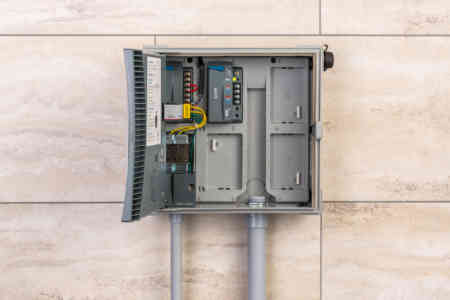

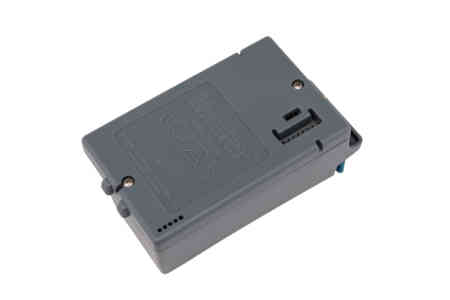

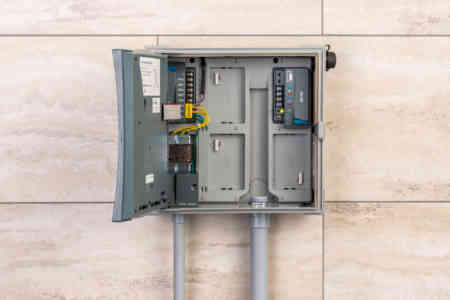

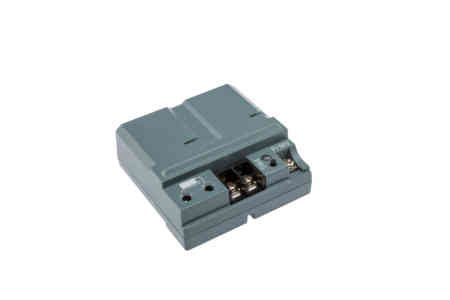

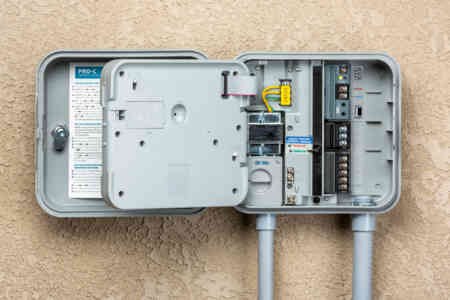

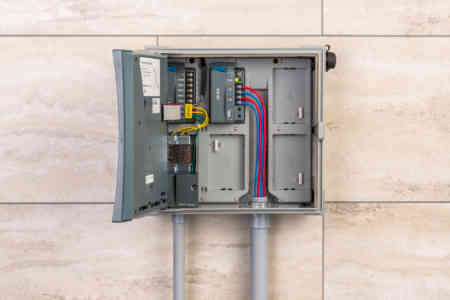

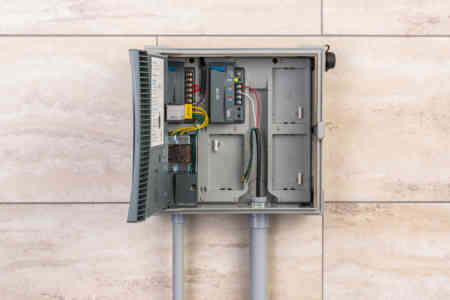

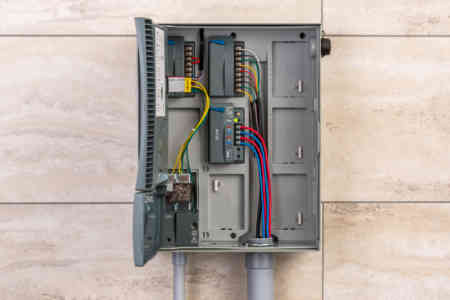

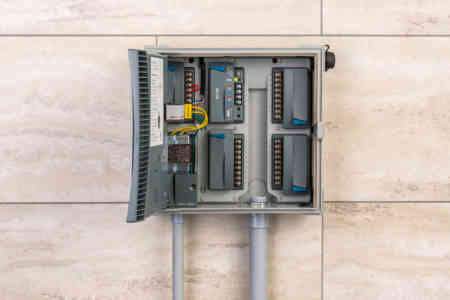

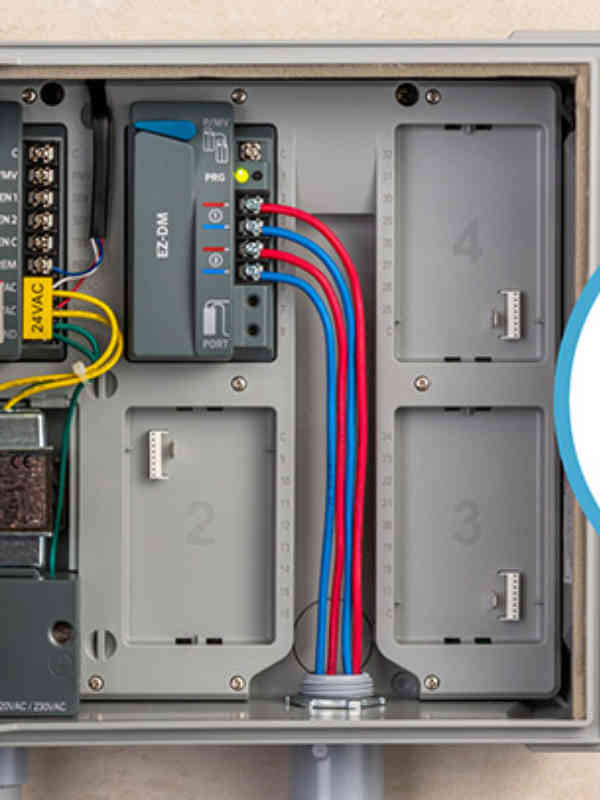

EZDS is compatible with all the features of our Hydrawise-enabled HCC controller, Centralus-enabled ICC2 controller, and reliable Pro-C controller. Plug in either the PC-DM or EZ-DM two-wire output modules to enable up to 28 (Pro-C) or 54 (HCC/ICC2) stations on a single pair of wires. Then simply place EZ Decoders at each valve!

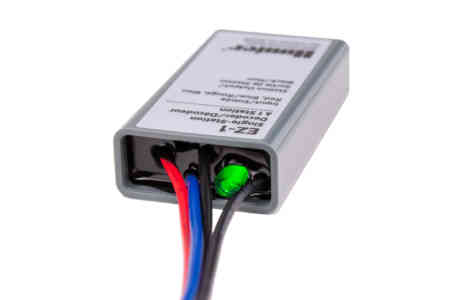

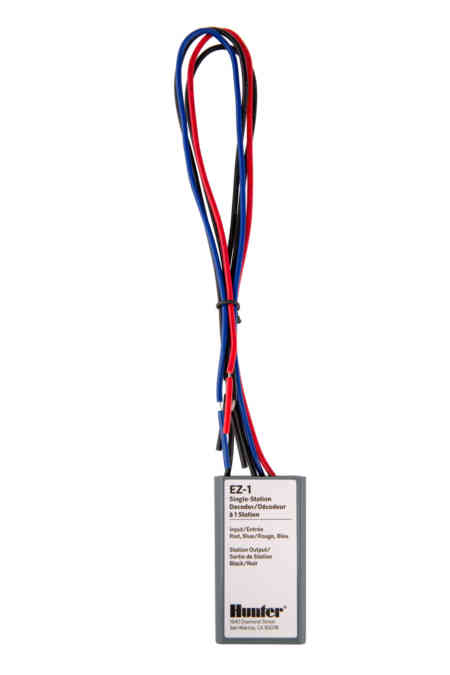

EZ Decoders are small, waterproof, and come with color-coded wiring and a convenient LED status light. They do not require special wire or connectors to function. Better yet, the system can coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits easy conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!

Key Benefits

  • Number of stations::
    • Pro-C: Up to 28, plus master valve
    • ICC2/HCC: Up to 54, plus master valve
  • No special wire or connectors required
  • No special grounding or surge arrestors required in-line to maximize time and money savings during installation
  • Programmable decoders with no need to input individual serial numbers
  • P/MV can activate via the two-wire path for pump stations or distant master valves

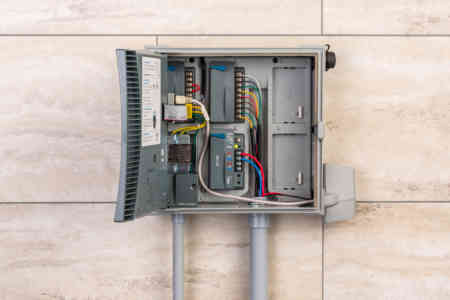

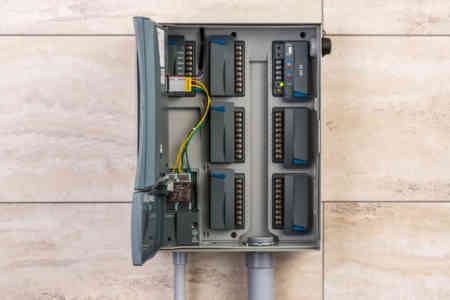

  • Permits hybrid operations of conventional and decoder stations for added flexibility
  • EZ-1 decoders have built-in status LED for positive diagnostics

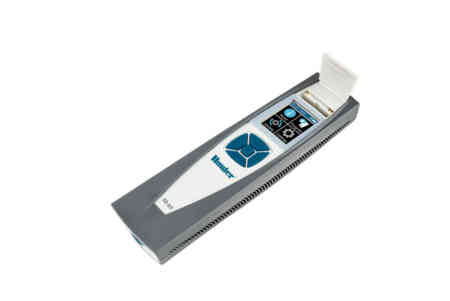

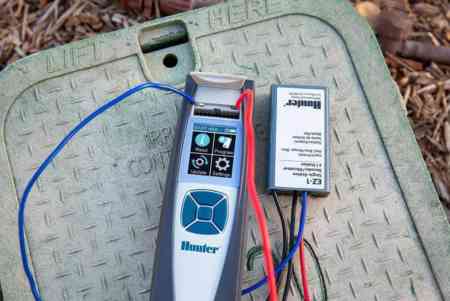

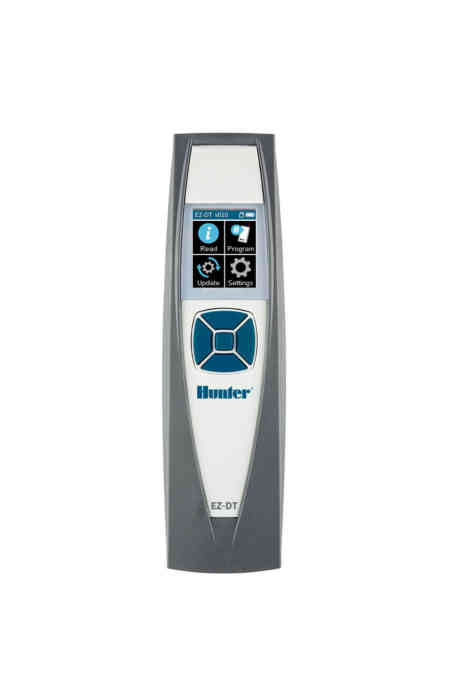

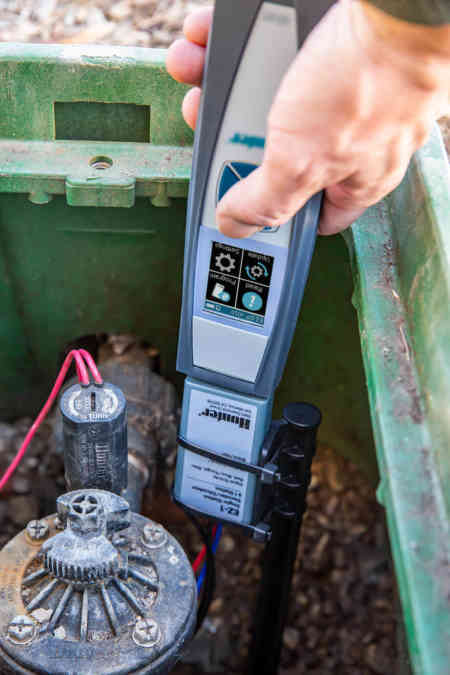

  • EZDT wireless, handheld diagnostic tool for EZ Decoder Systems::

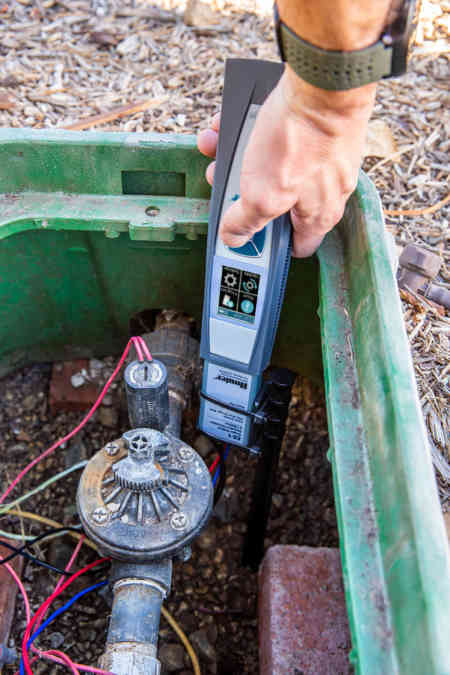

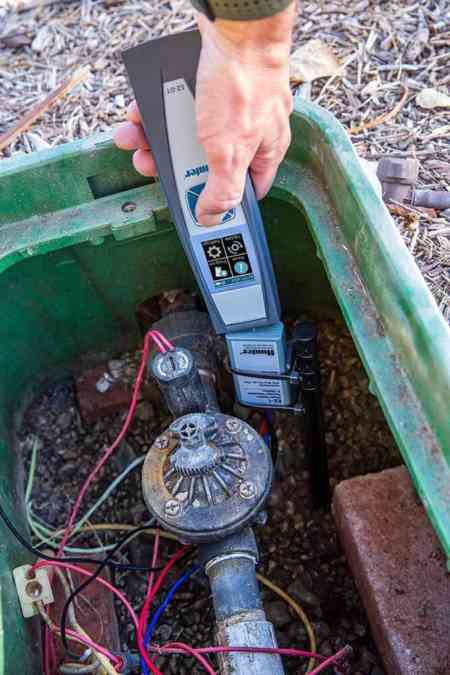

    • Detect faults and perform electrical troubleshooting in the field without uninstalling decoders
    • Quickly read decoder status, station address, current draw, and two-wire voltage to simplify maintenance

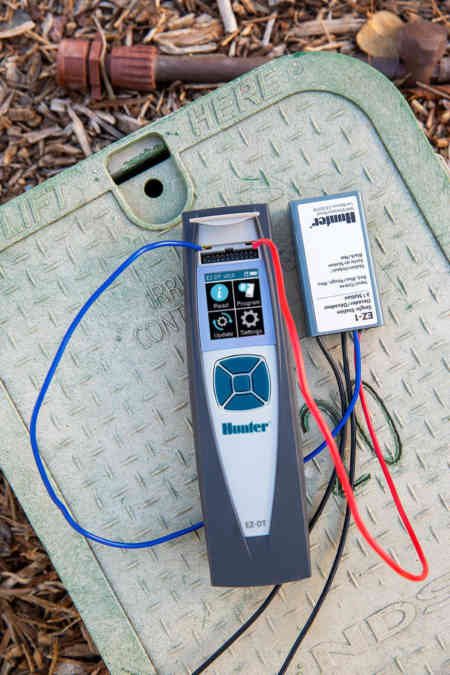

    • Program decoder station address via the wired connection to speed up installation and save time on-site

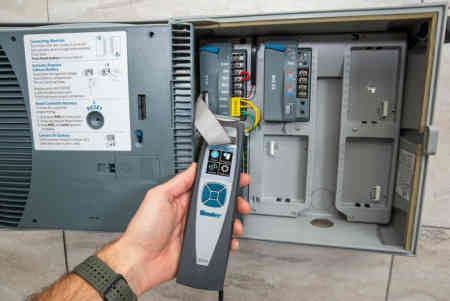

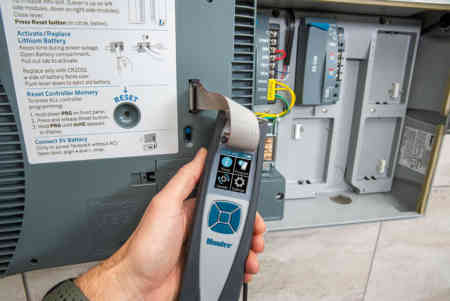

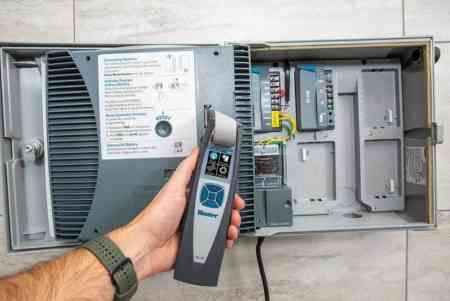

    • Update controller facepack or decoder module firmware via ribbon cable connection for flexibility when updating systems
    • Communicate in your preferred language using the multilingual user interface
    • Work reliably and efficiently on the go with power supplied by 4 AAA batteries
