Filters & Filter Regulators

Choose rugged filters and filter regulators with stainless steel screens for maximum performance.
Choose rugged filters and filter regulators with stainless steel screens for maximum performance.

Specifications

  • System: Regulation and Filtration, All in One Component

Features

Filter Regulators

These pre-assembled kits bring together both a filter and a pressure regulator, providing you with a complete assembly. The kits use a 150 mesh stainless steel filter screen, a flush cap and a pressure regulator to maintain a consistent 1.7 or 2.8 bar; 170 or 280 kPa at flows between 2 – 55 l/min. Available in ¾” inlet, with ¾” outlet, ready to be used in all drip irrigation projects.

Filters

The filter is available in ¾”. The filter has a 150 mesh stainless steel filter screen and a flush cap for easy maintenance.

Key Benefits

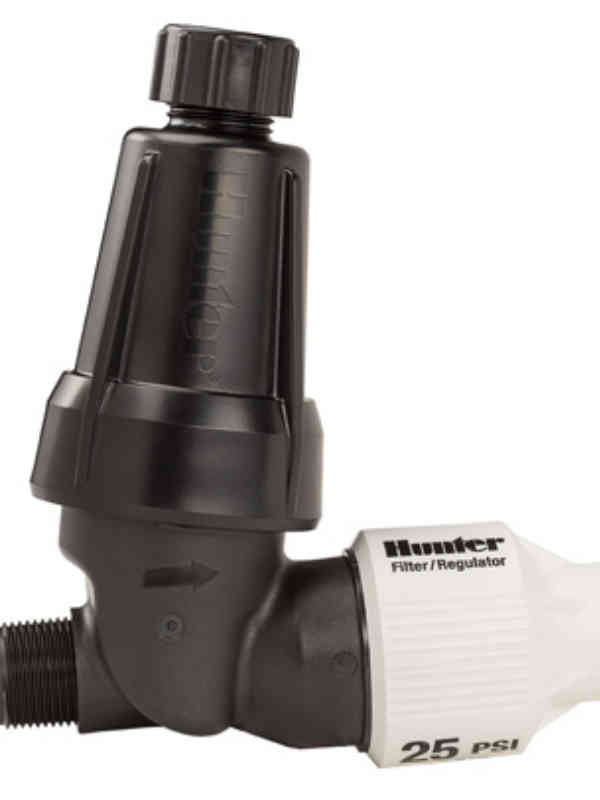

  • HFR-075 (Hunter Filter Regulator):
    • Compact, all-in-one filter and regulator minimise required valve box space
    • Senninger regulator provides precise regulation to protect system from high pressure
    • 150 mesh (100 microns) stainless steel screen for years of reliable filtration
    • Wide flow range covers most drip applications
  • HY-075 (Hunter Y-Filter):
    • 150 mesh (100 microns) stainless steel screen for years of reliable filtration - Wide flow range covers most drip applications
