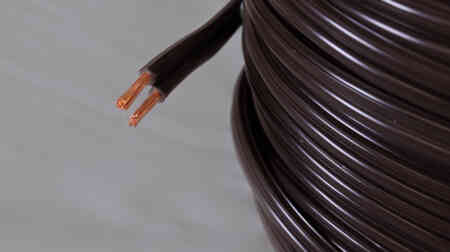

2Core Figure 8 Direct Burial
Pack Size:
2.5mm² 20, 50 and 100 metres.
4.0mm² 50 and 100 metres.
6.0mm² 100 metres.
10.0mm² 100 metres.
Other custom pack sizes and sheath colours available upon request.
•Conductors:
Multi strand plain annealed Copper to AS/NZS 1125 drawn from class 5 copper.
•Insulation:
Dark Brown PVC V90 to AS/NZS 3808:2000, sunlight and moisture resistant.One leg of cable has raised ridges.
•Cable Assembly:
The 2 cores are laid parallel and insulated. A continuous web keeps the conductors together. Cores must be able to be separated without showing copper.
