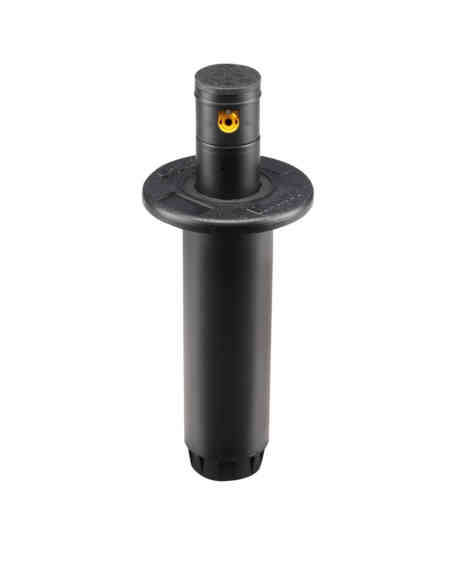

G-35-B

With a wide range of performance to choose from, the B Series rotors are easy on the budget
Cancun

Specifications

  • Model: Full-Circle / Part-Circle
  • Radius: 5.5 to 15.2 m
  • Flow: 0.43 to 2.91 m┬│/hr; 7.2 to 48.5 l/min
  • Pressure: 2.8 to 4.5 bar; 280 to 450 kPa

Features

Easy to adjust and maintain, Hunter's G-35 golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for short and mid-distance coverage including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body.

Key Benefits

  • Adjustable arc water lubricated gear-drive
  • 50 to 360 degree adjustable arc range
  • Arc adjustable anytime; un-installed, installed or while in operation
  • QuickSet-360 adjustable arc and non-reversing full-circle in one rotor
  • Quick check arc mechanism makes arc adjust fast and easy
  • Closed-case design helps prevent sticking riser and leaking seals
  • Flexible performance with 8 nozzles to choose from
