Nelson Irrigation Australia


The Ultimate TTS Solution for Short and mid-range golf applications


  • Model: Full-Circle / Part-Circle
  • Radius: 5.5 to 15.2 m
  • Flow: 0.43 to 2.91 m³/hr; 7.2 to 48.5 l/min
  • Pressure: 2.8 to 4.5 bar; 280 to 450 kPa

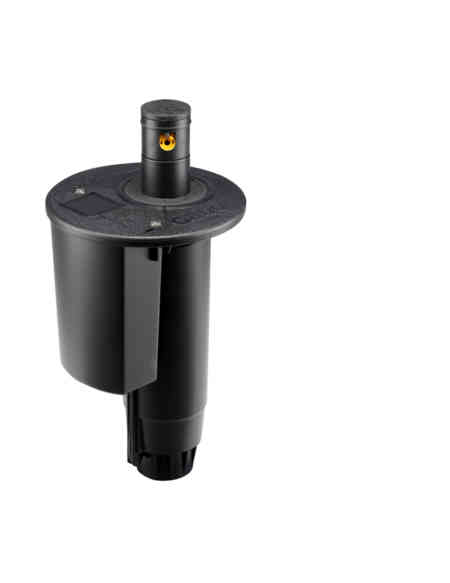

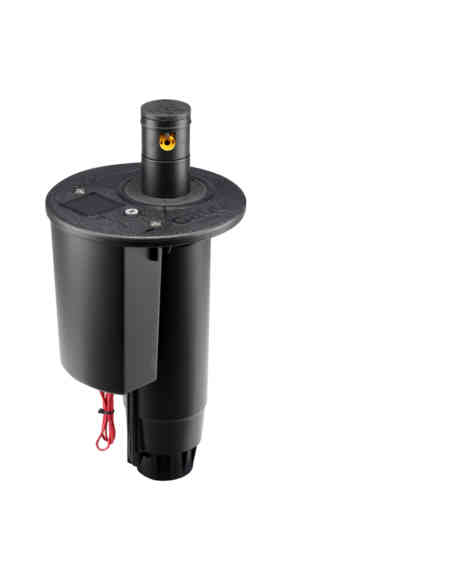

G800 Series rotors are reliable and efficient short and mid-range performers that provide unsurpassed distribution with a wide range of flow and radius capabilities. They are availabe in an array of TTS and DIH configurations. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there’s no more digging, and no more unsightly scars.

Key Benefits

  • Adjustable arc water lubricated gear-drive
  • Arc adjustable anytime; un-installed, installed or while in operation
  • 50 to 360 degree adjustable arc range
  • QuickSet-360 adjustable arc and non-reversing full-circle in one rotor
  • Quick check arc mechanism makes arc adjust fast and easy
  • Closed-case design helps prevent sticking riser and leaking seals

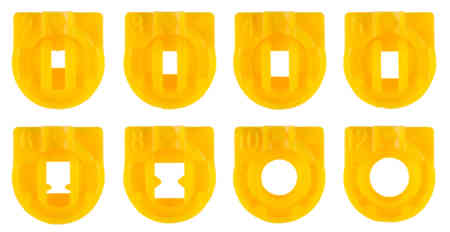

  • Flexible performance with 8 nozzles to choose from
