The Ultimate TTS Solution for Mid-Range Golf Applications
Golf Course


  • Model: Full-Circle
  • Radius: 14.9 to 29.6 m
  • Flow: 3.23 to 13.29 m³/hr; 53.8 to 221.4 l/min
  • Pressure: 3.4 to 6.9 bar; 340 to 690 kPa

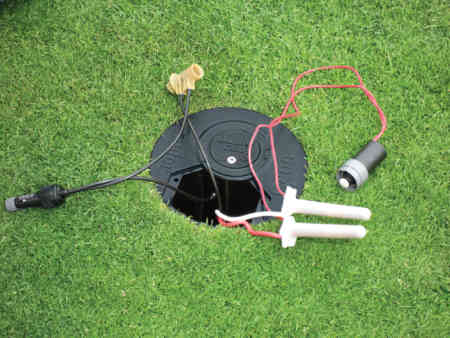

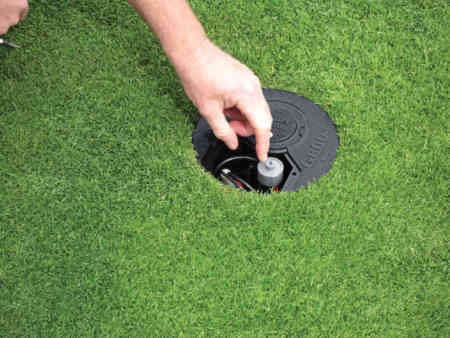

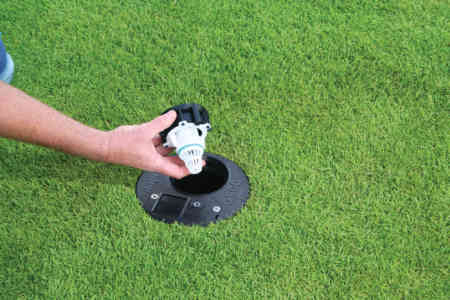

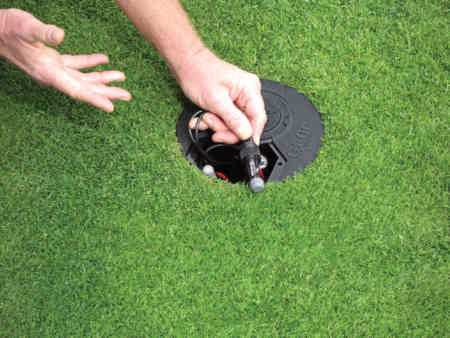

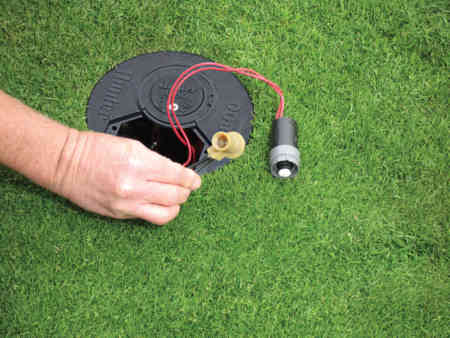

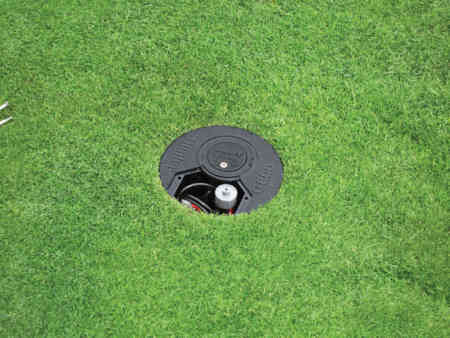

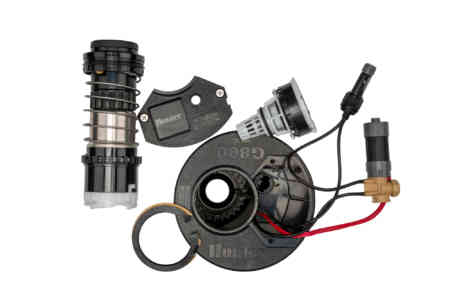

G-800 Series rotors are reliable and efficient mid-range performers that provide unsurpassed distribution with a wide range of flow and radius capabilities. They are availabe in an array of TTS and DIH configurations. Patented TTS technology allows for every serviceable element of the rotor to be accessed through the top. Mechanical and electrical, big and small, you can get to every component without disturbing the playing surface. That means there’s no more digging, and no more unsightly scars.

Key Benefits

  • Full circle water lubricated gear-drive
  • Exclusive PressurePort™ technology delivers uniform and consistent coverage
  • Closed-case design helps prevent sticking riser and leaking seals
  • Flexible performance with 6 nozzles to choose from
