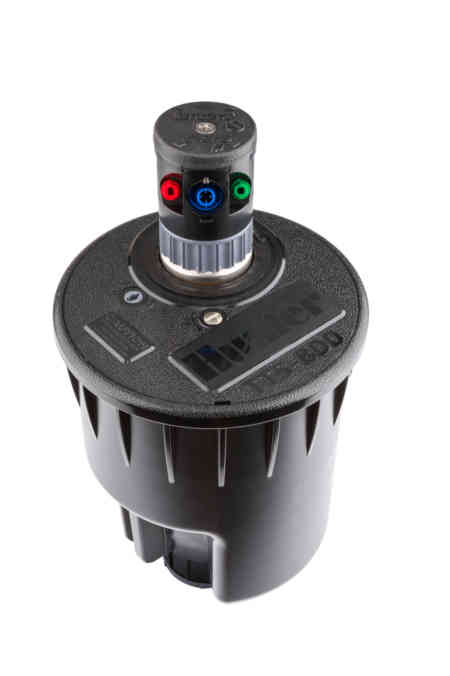

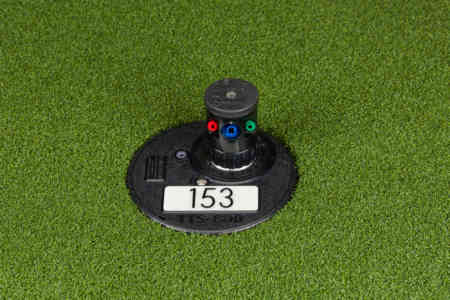

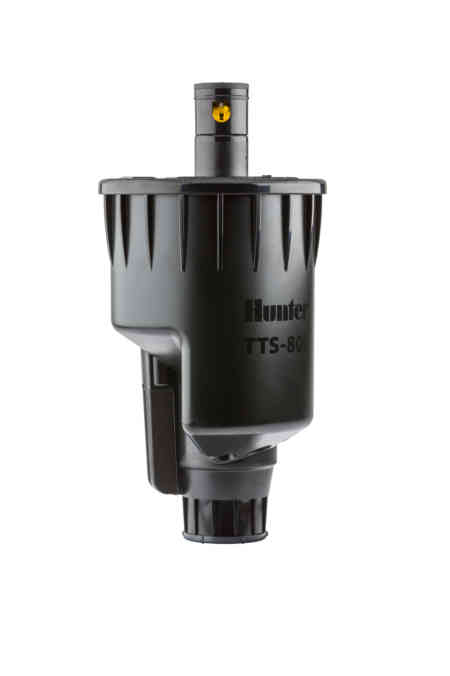

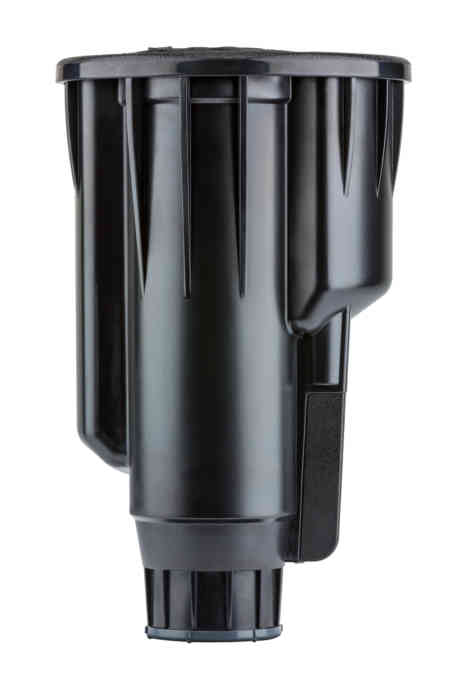

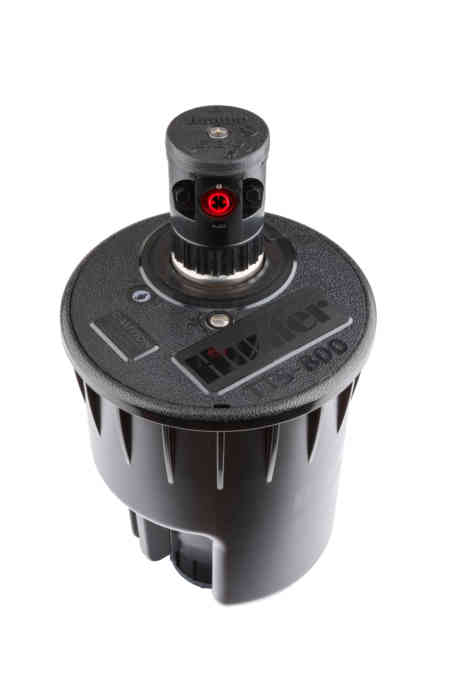

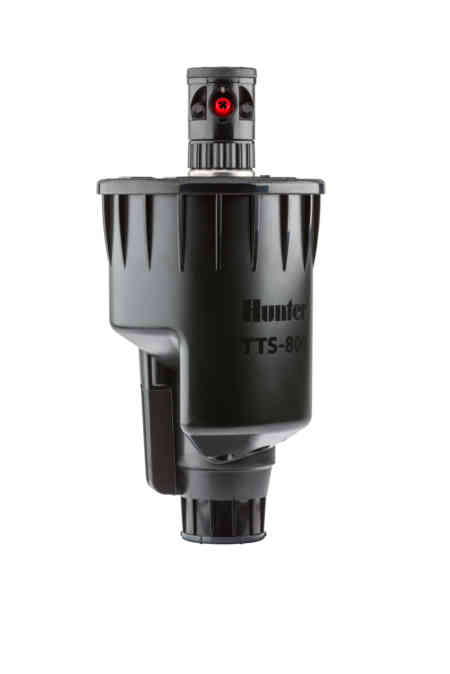

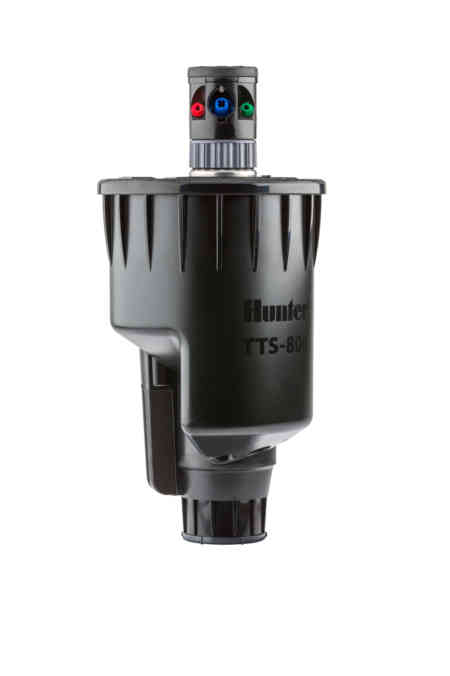

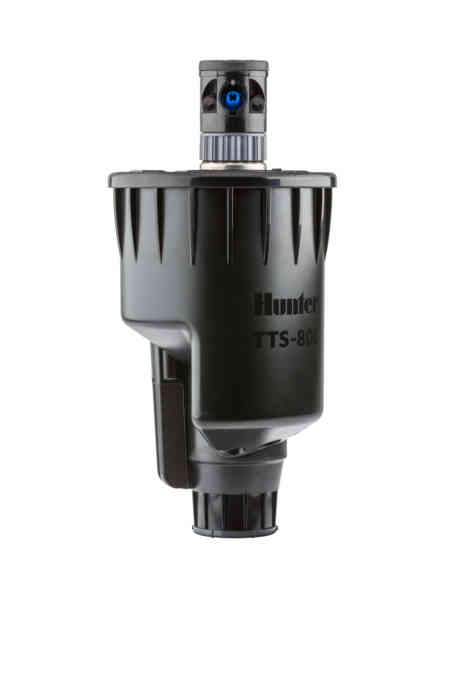

GT-835

These rotors have Total-Top-Serviceability, powerful G-800 Series gear drives, and the largest flange compartment in the industry to accommodate all two-way module components.

Specifications

  • Model: Full-Circle / Part-Circle
  • Radius: 5.5 to 15.2 m
  • Flow: 0.43 to 2.91 m³/hr; 7.2 to 48.5 l/min
  • Pressure: 2.8 to 4.5 bar; 280 to 450 kPa

Features

TTS-800 Series rotors provide maximum uniformity and longevity in the field. The high-torque gear drives are the strongest in the industry, so the challenges of reclaimed water use or poor water quality are mitigated. An extra-large, fast-access flange compartment comfortably accommodates wire connections and other components. Convenient, no-dig Total Top Serviceability means routine maintenance is a breeze.

Key Benefits

  • Model: GT-835: Full/Part-circle (50º to 360°)
  • QuickCheck™ arc mechanism
  • QuickSet-360 arc mechanism
  • Nozzle choices: 8 multi-trajectory (15° to 25°)
  • Nozzle range: #2 to #12
  • Water-lubricated gear drive

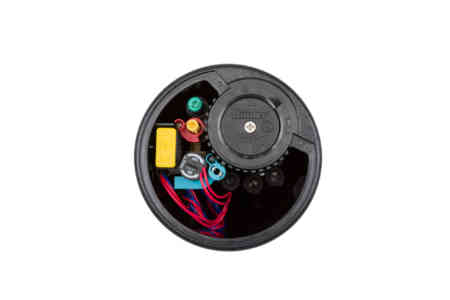

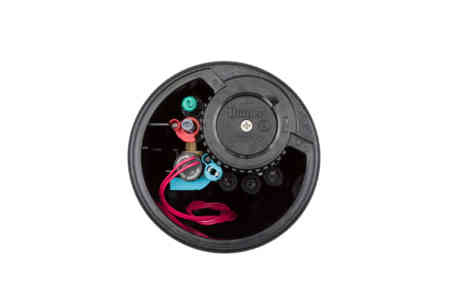

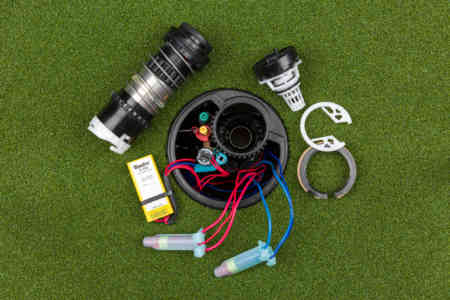

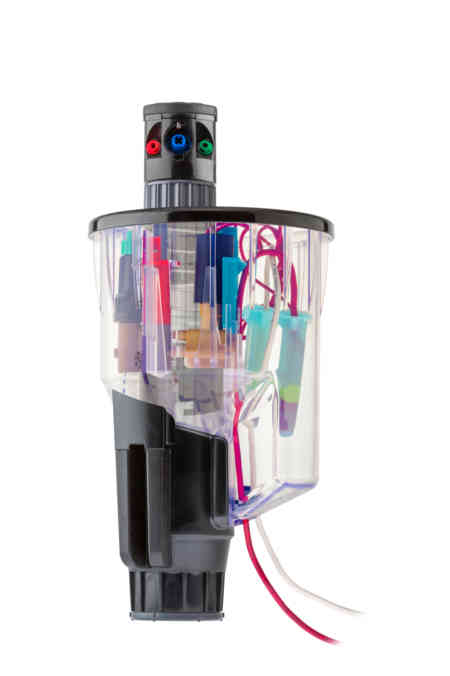

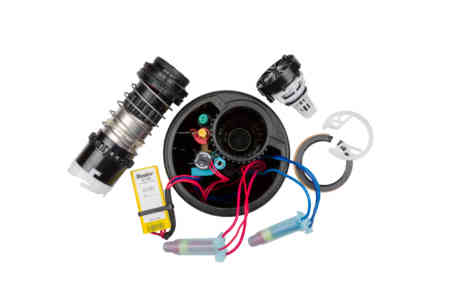

  • Largest flange compartment in the industry

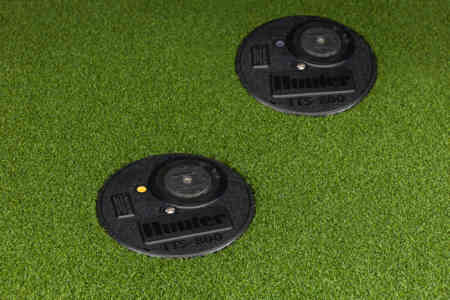

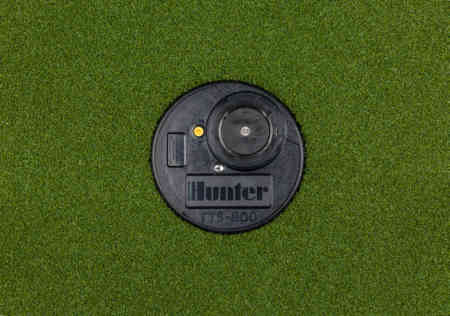

  • Heavy-duty flange compartment lid
  • Single-point ¼-turn compartment lid release
  • Color-coded control components
  • Solenoid and regulator service without depressurization
  • Stage 2 oversized filtration system
  • Three cable access ports
  • Two splice connectors included (DIH Models)
  • Serviceable inlet valve seat and seat-seal
  • Self-cleaning Filter Sentry inlet valve
