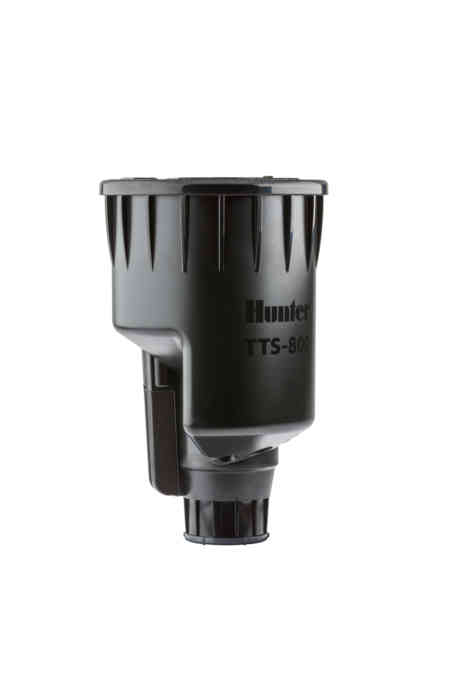

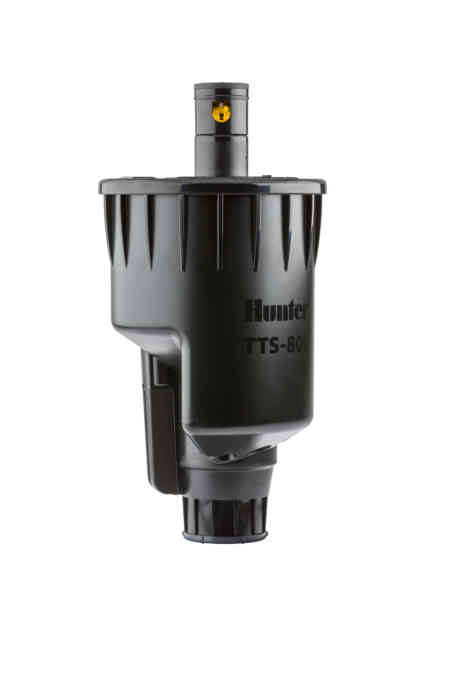

These rotors have Total-Top-Serviceability, powerful G-800 Series gear drives, and the largest flange compartment in the industry to accommodate all two-way module components.
Golf Course


  • Model: Full-Circle
  • Radius: 14.9 to 29.6 m
  • Flow: 3.23 to 13.29 m³/hr; 53.8 to 221.4 l/min
  • Pressure: 3.4 to 6.9 bar; 340 to 690 kPa

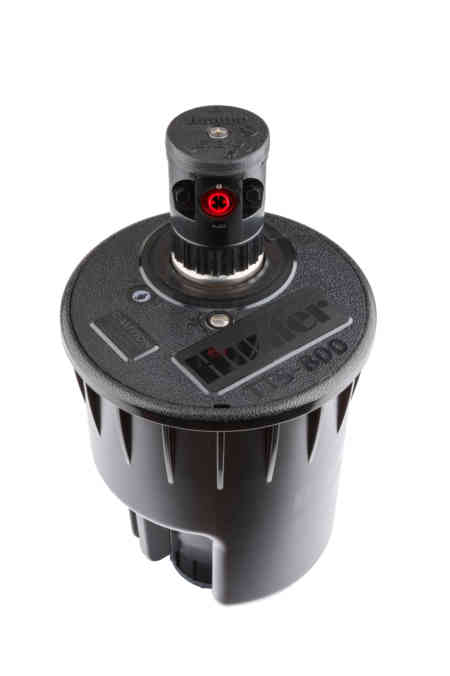

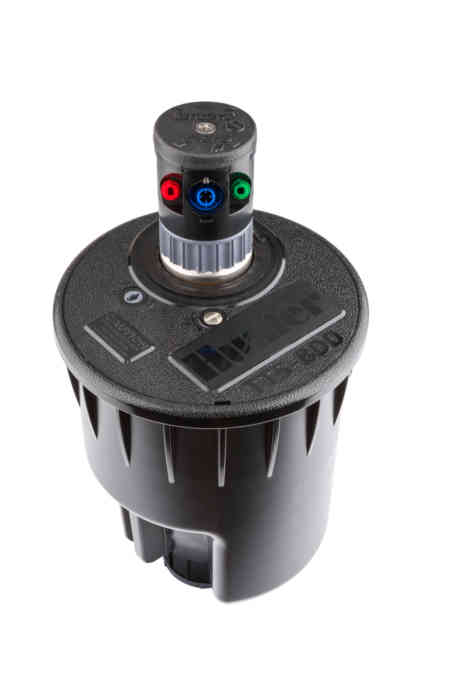

TTS-800 Series rotors provide maximum uniformity and longevity in the field. The high-torque gear drives are the strongest in the industry, so the challenges of reclaimed water use or poor water quality are mitigated. An extra-large, fast-access flange compartment comfortably accommodates wire connections and other components. Convenient, no-dig Total Top Serviceability means routine maintenance is a breeze.

Key Benefits

  • Model: GT-880 – Full-circle

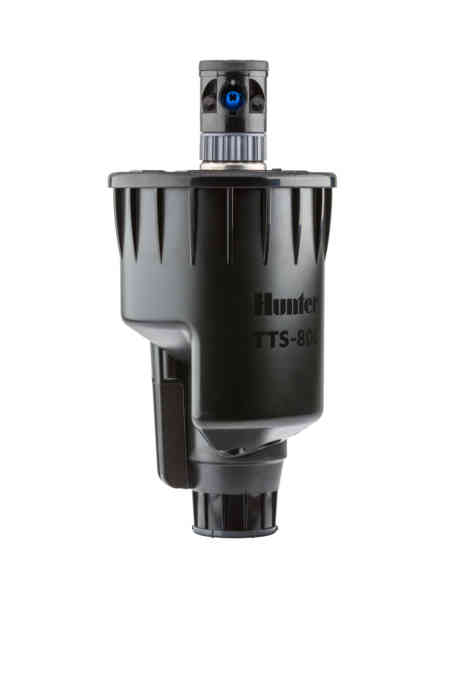

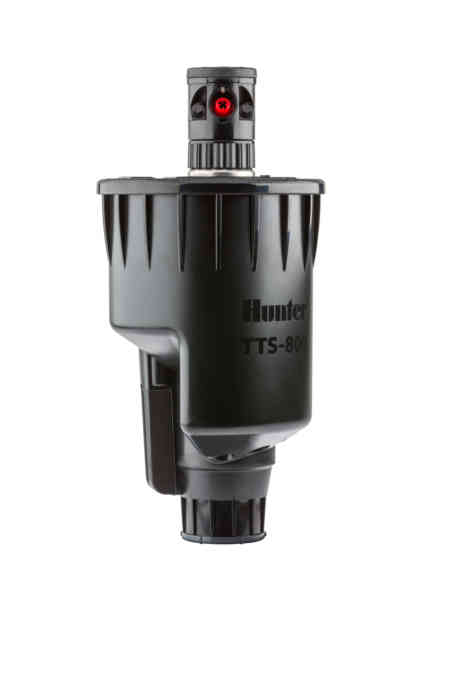

  • Dual-trajectory, color-coded nozzles:
    • 10 standard trajectory (22.5°)
    • 9 low-angle trajectory (15°)

  • Nozzle range: #15 to #53
  • Exclusive PressurePort™ nozzle technology

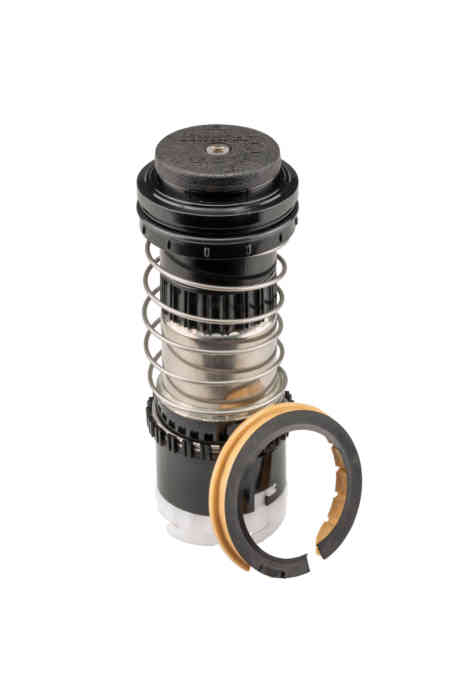

  • Stainless-steel riser
  • Water-lubricated gear drive

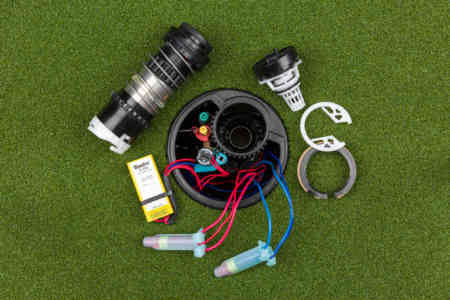

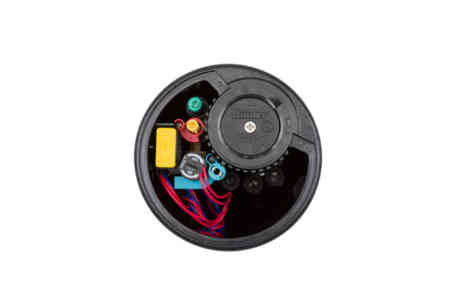

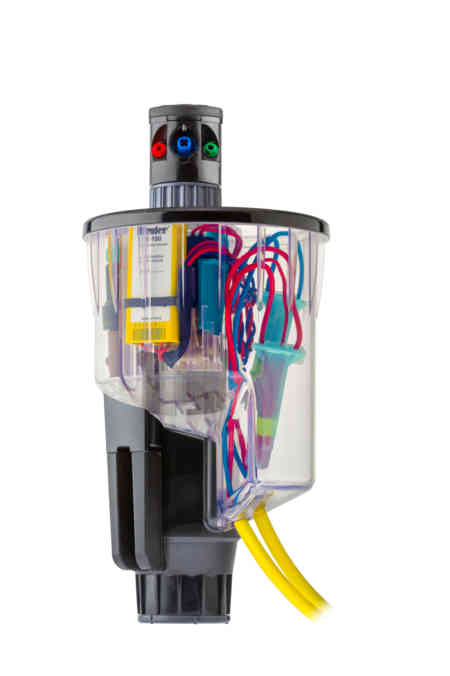

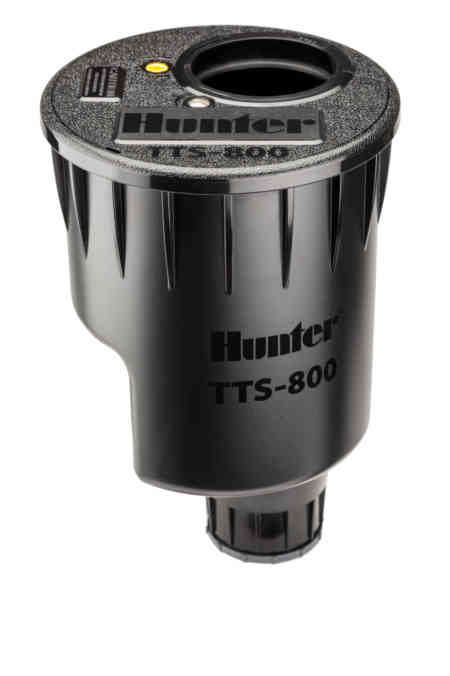

  • Largest flange compartment in the industry

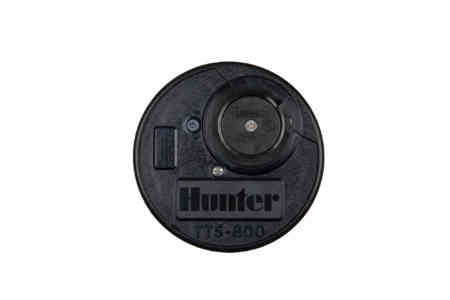

  • Heavy-duty flange compartment lid
  • Single-point ¼-turn compartment lid release
  • Color-coded control components
  • Solenoid and regulator service without depressurization
  • Stage 2 oversized filtration system
  • Three cable access ports
  • Two splice connectors included (DIH Models)

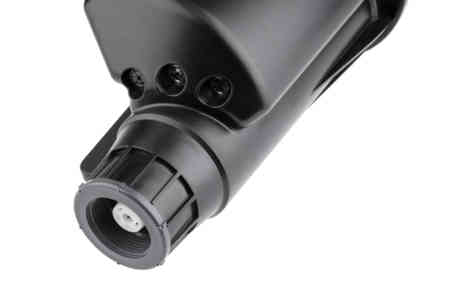

  • Serviceable inlet valve seat and seat-seal
  • Self-cleaning Filter Sentry™ inlet valve
