HCC

Features

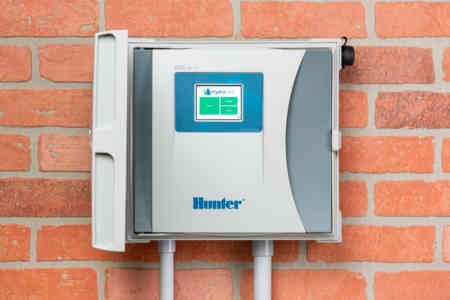

The next-generation HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise™ platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects — all with the simple click of a button.

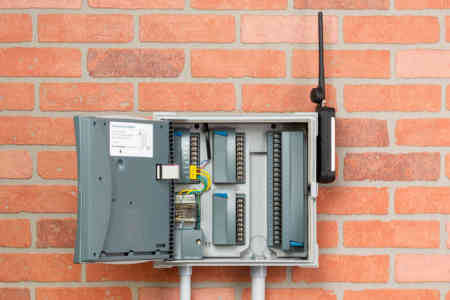

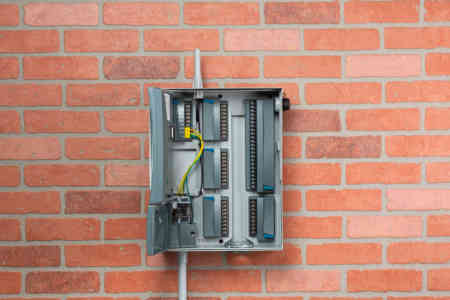

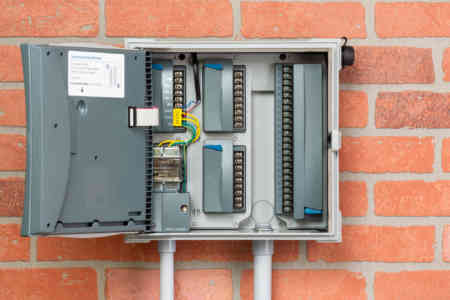

The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 stations* and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort®, HCC is also compatible with Hunter’s ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone.

With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.

* Expandable in 4-, 8-, 22-, and 54-station increments

Key Benefits

• Number of stations::

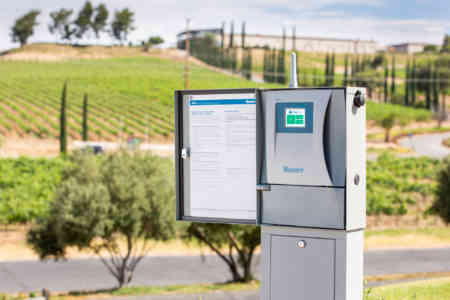

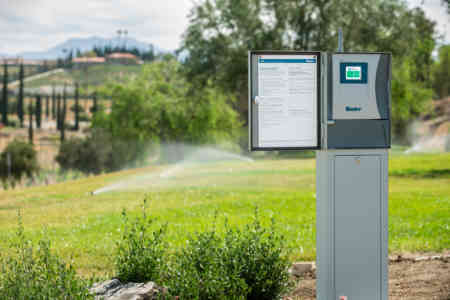

  • Conventional: 8 to 38 (plastic), 8 to 54 (metal and pedestals)*
  • With two-wire EZDS: up to 54 (all enclosure options)
• Standard programming option allows for 6 independent irrigation programs and 6 start times per program
• Advanced programming option provides station-based programming with up to 6 total start times available
• 24-hour maximum station run time provides flexibility for low-flow zones
• Any 2 programs or stations can operate simultaneously, providing more efficient watering
• 2 sensor inputs available for use with any Clik sensors and HC Flow Meter
• 1 P/MV output for pump start relay and master valve activation
• Wi-Fi enabled for quick connection to Hydrawise software

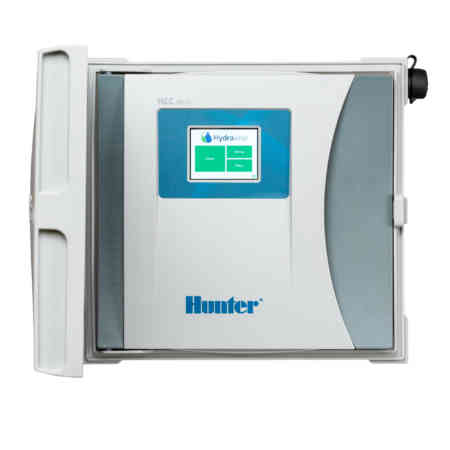

• 8 cm full-colour touchscreen display for simple programming at the control panel
• Built-in milliamp sensor for wire fault detection and alerts
