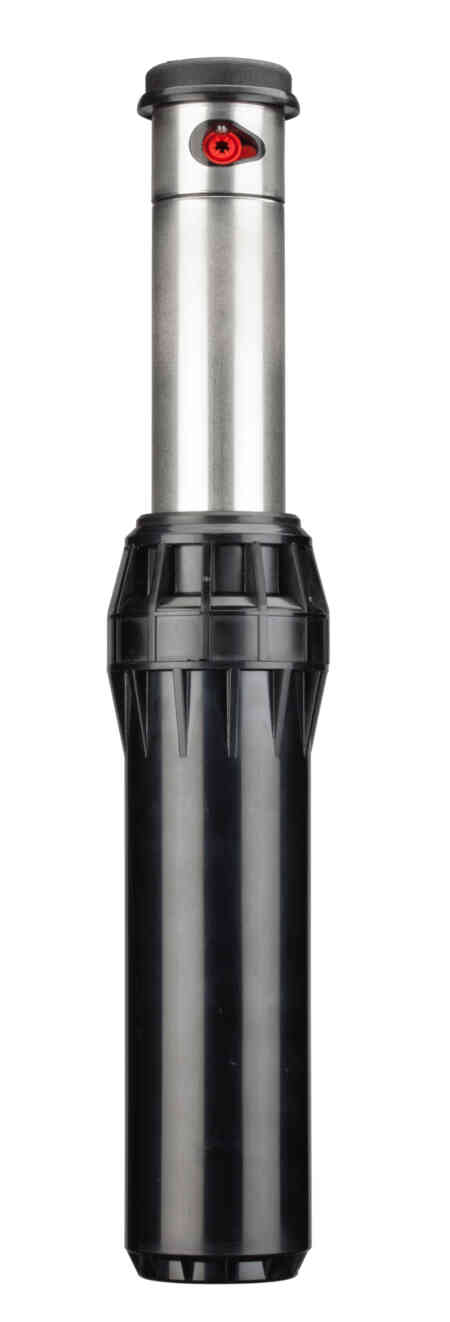

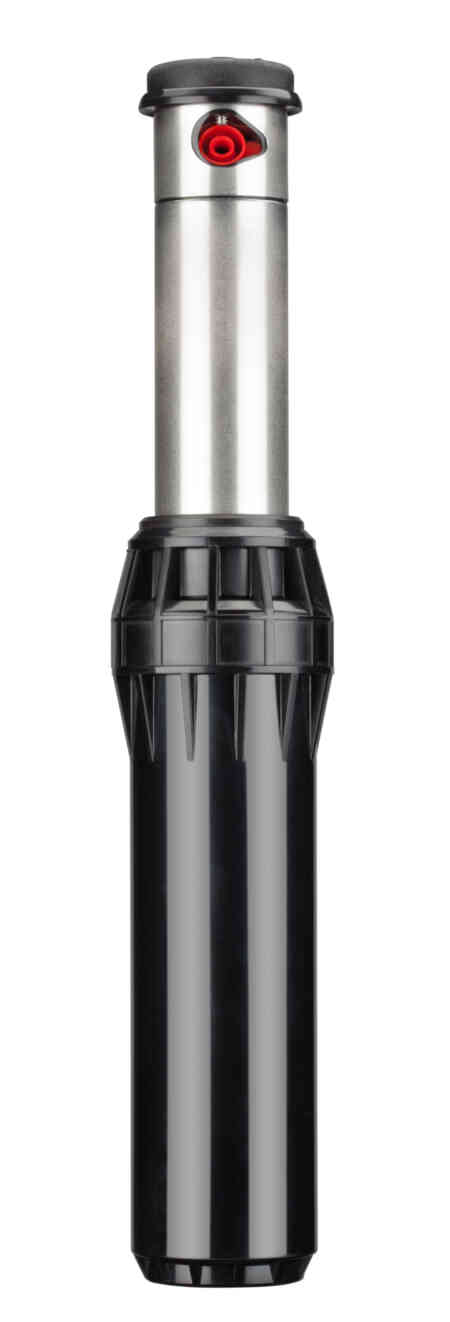

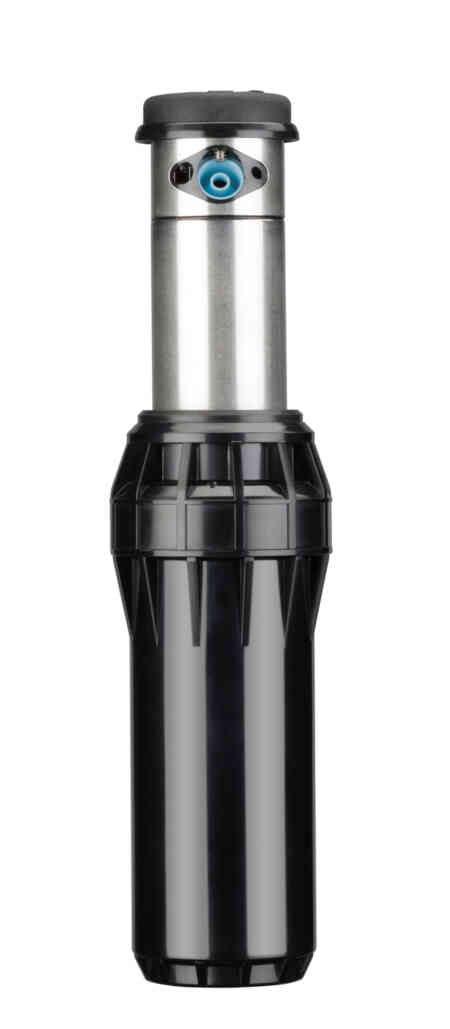

I-40

The I-40 Rotor has a comprehensive list of upgraded features that make it the top choice for demanding, large turf projects.
The I-40 rotor has a comprehensive list of upgraded features that make it the top choice for demanding, large turf projects.

Specifications

  • Radius: 45' to 76'
  • Flow: 7.6 to 29.5 GPM
  • Flow: 27.2 to 114.1 l/min
  • Inlet Size: 1" NPT

Features

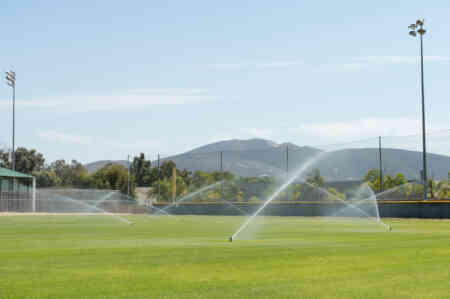

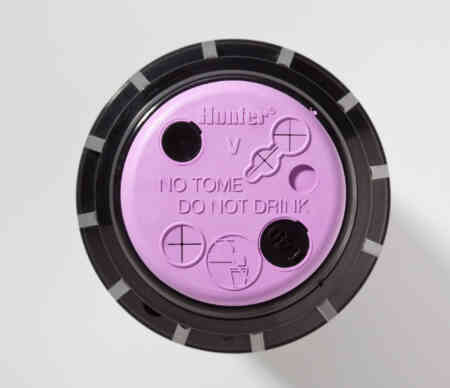

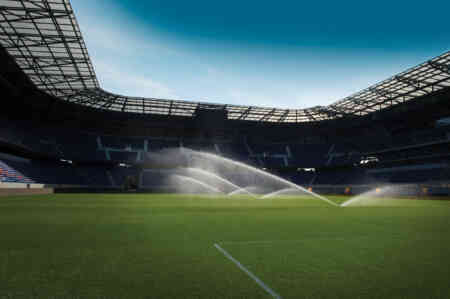

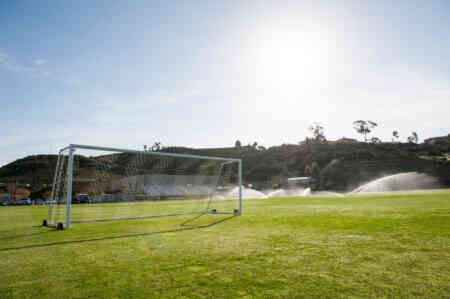

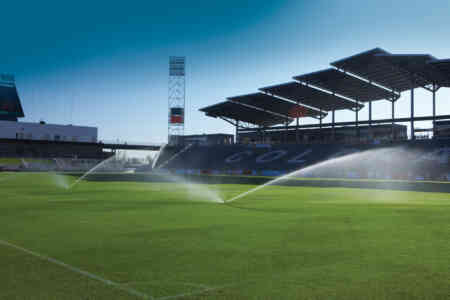

The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 23.2 m. Featuring diverse three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury, it's no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports fields, public parks, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional's best solution.

Key Benefits

  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50┬░ to 360┬░
  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory

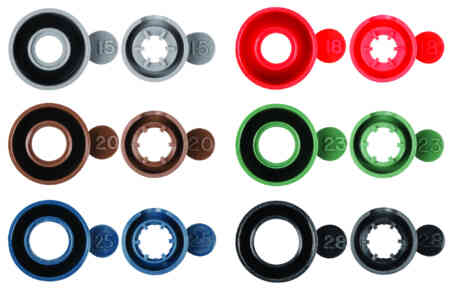

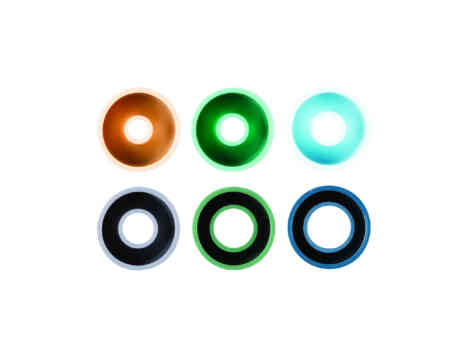

  • Colour-coded nozzles make identification easy

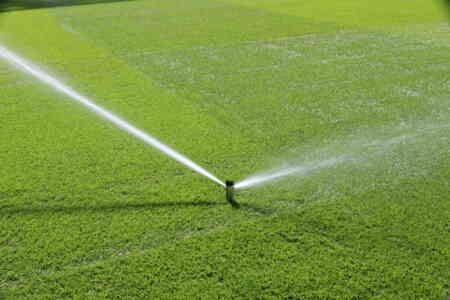

  • Available opposing nozzle model for even watering in full-circle applications (I-40-ON model)
  • Drain check valve prevents low-head drainage (up to 4.5 m of elevation)
