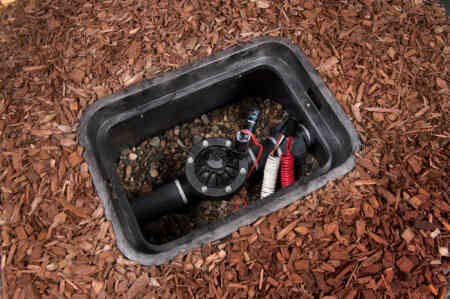

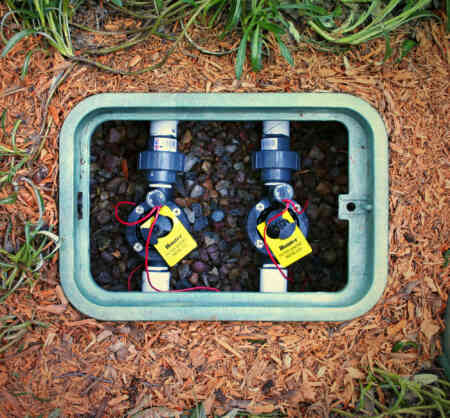

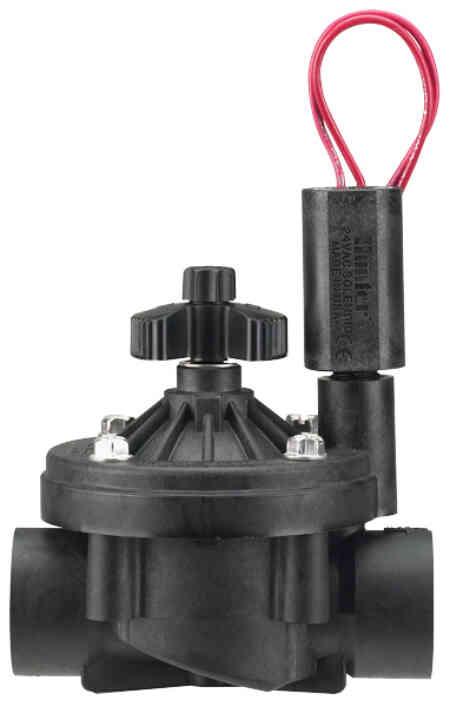

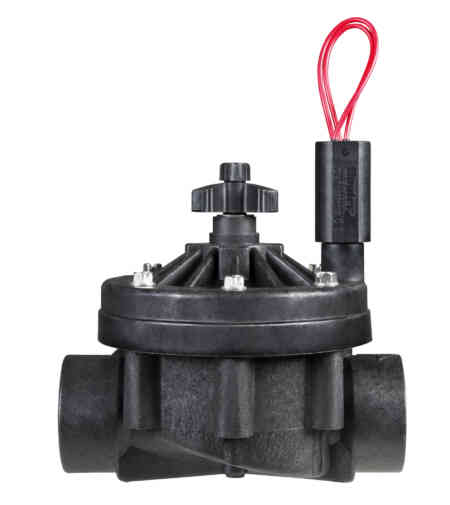

ICV

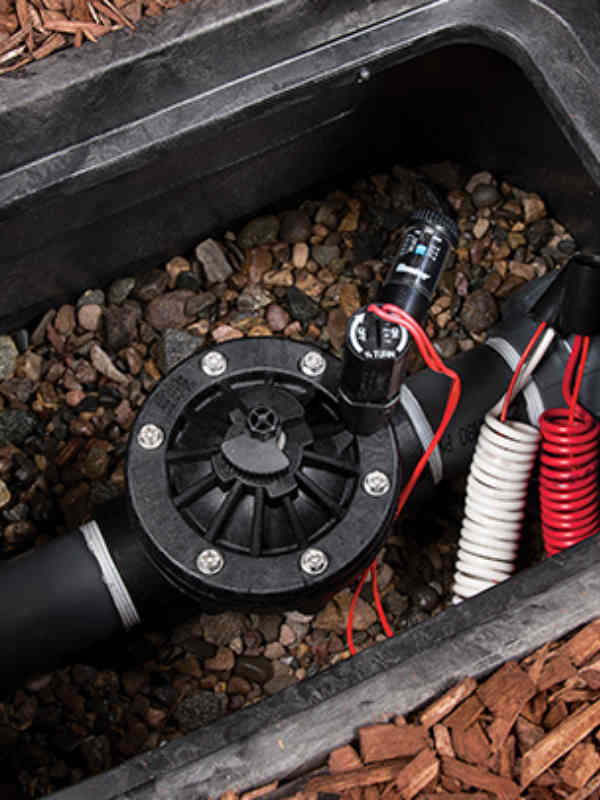

This valve is the perfect choice for high-pressure systems and dirty water conditions.
This valve is the perfect choice for high-pressure systems and dirty water conditions.

Specifications

  • Inlet / Outlet: 1" (25 mm); 1½" (40 mm); 2" (50 mm); 3" (80 mm)
  • Flow: 0.06 to 68 m³/hr; 0.4 to 1,135 l/min

Features

In order to create a plastic valve that can consistently operate at 15 bar, Hunter relies on only materials that are both time and contractor proven. Created to handle the wide range of conditions different sites will bring, the ICV valve includes both a fabric reinforced EPDM diaphragm and seat, and flow control as standard features. It can consistently withstand pressures of up to 15 bar while handling the continual hammer that such forces will produce. Plus, it’s exceptionally easy to service, with bonnet bolts that can be loosened and tightened using a variety of common contractor tools. A Filter Sentry™ option is also available for applications that involve dirty water. The Filter Sentry™ system keeps the the valve filter screen free of debris commonly found in non-potable water sources.

Key Benefits

  • Optional Filter Sentry™ scours the filter screen in dirty water conditions
  • External/internal manual bleed allows for quick and easy activation at the valve
  • Glass-filled nylon construction provides high pressure rating and reliability
  • Double-beaded diaphragm seal design ensures leak-free performance

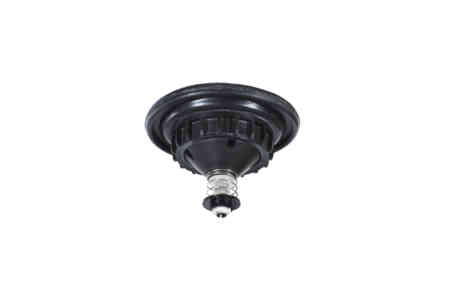

  • Fabric-reinforced EPDM diaphragm and seat ensure greater performance in all water conditions
  • Captive bonnet screws eliminate the possibility of lost parts during disassembly
  • Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
  • Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service

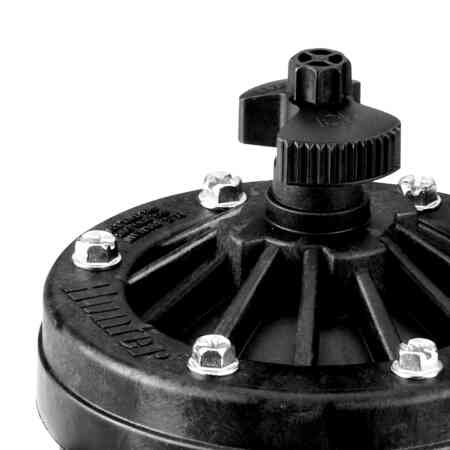

  • Flow control maximises efficiency and prolongs the life of the system
