MM200 Multimeter

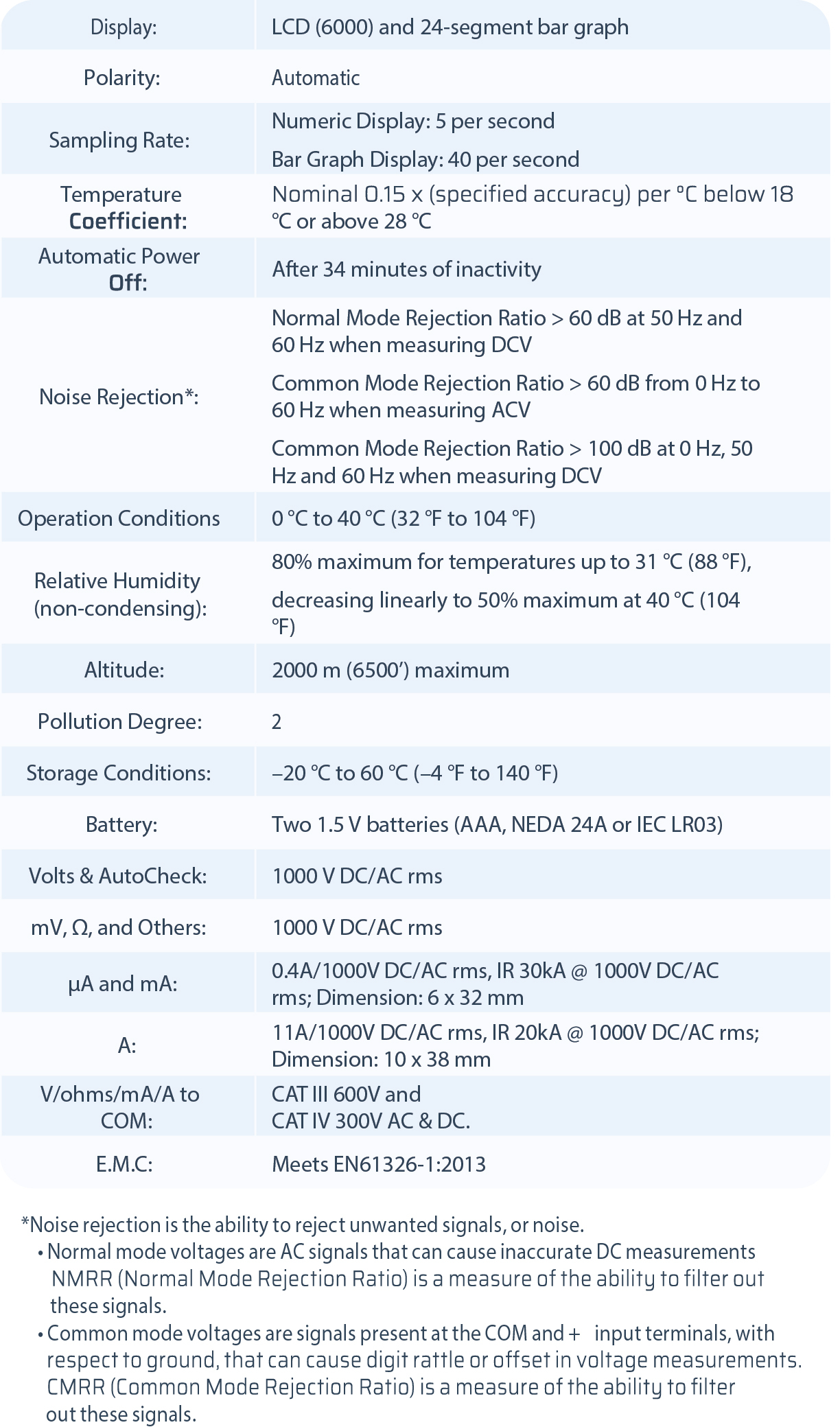

  • Display : LCD (6000) and 24-segment bar graph
  • Automatic Shut-Off : After 34 minutes of inactivity
  • Operating Conditions : 0 °C to 40 °C

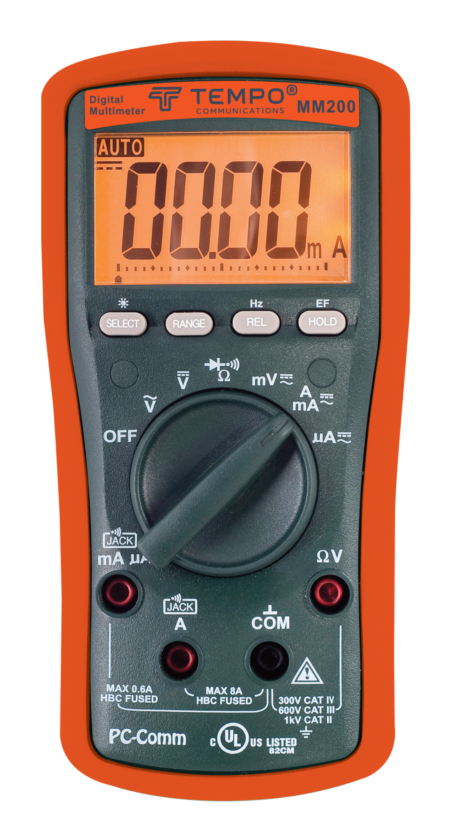

Equipped with all the measurement features you’re likely to need, the MM200 from Tempo Communications is an accurate, 6000 count, segmented, bar-graph, auto-ranging multimeter that will suit most electricians’ needs.

Built to international safety standards, the MM200 performs all the tests any electrician would want from a multimeter. Features like “BeepJack” help prevent damage when leads are attached to the wrong terminals for the type of test selected. Fully auto-ranging or manual—the choice is yours. The backlit LCD helps when testing in those awkward cupboards.

  • Volts
  • ohms
  • Current
  • Frequency
  • Continuity
  • Diode
  • Non-contact electric field detection plus relative measurements
  • Display backlight
  • Reading hold
  • CAT-IV 300V, CAT-III 600V
  • Supplied with silicone insulated safety leads with removable CAT-IV arc-flashguards
  • Supplied with a custom-built fabric carry case

MM200 Multimeter: Testing| Troubleshooting| Accuracy

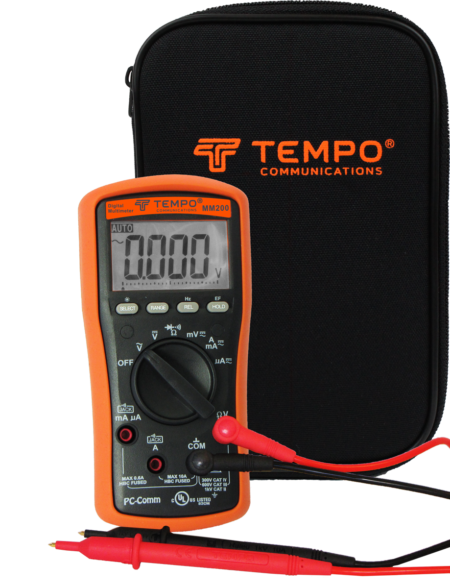

Supplied with a zipper case and high-quality safety test leads:

Product Features:

  1. Fast response 24 segment “bar-graph”
  2. 6000 Count large digit LCD
  3. Core accuracy better than 0.5%
  4. Average responding AC measurements
  5. Measurements
    • Voltage (ac or dc)
    • Current (ac or dc)
    • Continuity
    • Resistance
    • Diode
    • Frequency
    • Electric Field (EF) voltage detector
