Nelson Irrigation Australia

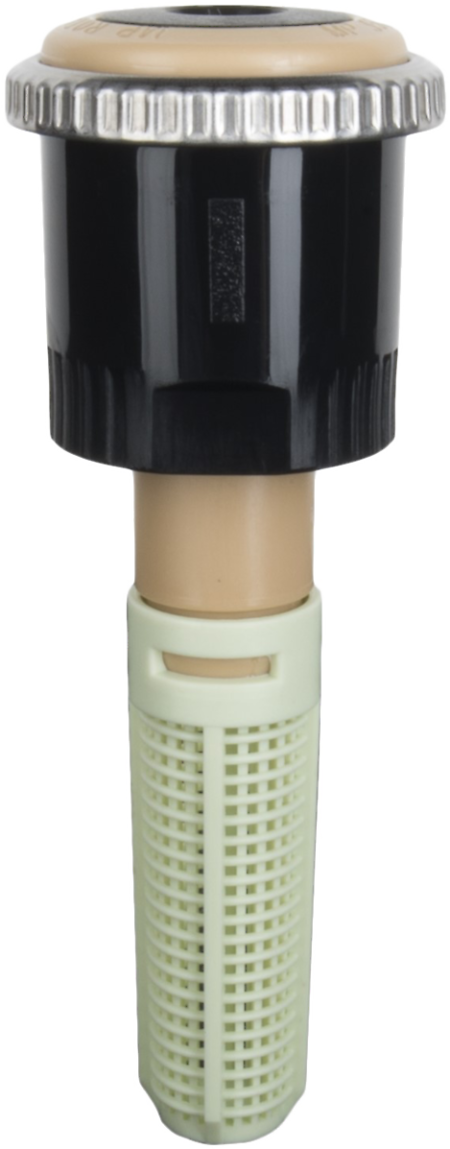

MP3500

The MP3500 is a 31' to 35' (9.4-10.7 meter) radius sprinkler that fits any conventional spray head body or shrub adapter. Available in the 90-210° model.

Specifications

  • Pressure: 25-55 psi (1.7-4 bar)
  • Radius: 31-35 ft (9.4-10.7 m)

Features

WATER CONSERVATION TOOL

  • Multi-trajectory rotating streams provide unmatched uniformity
  • Automatic matched precipitation even after arc & radius adjustment
  • Low application rate reduces runoff on slopes & tight soils

PROVEN DURABILITY & RELIABILITY

  • Rotator® Technology proven in demanding agricultural conditions since 1987
  • One moving part
  • Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by

SIMPLE ADJUSTMENTS

  • Easy arc adjustment
  • Easy radius adjustment - up to 25%*
  • No need to change nozzle to maintain matched precipitation
  • Removable inlet filter for easy cleaning

SIMPLIFY DESIGN & INSTALLATION

  • The MP Strips, MP Corner, MP1000, MP2000, MP3000 and MP3500 can be combined on the same zone
  • Precip. Square ~ 0.4 in/hr
  • Precip. Triangle ~ 0.45 in/hr

*When operating the MP3500 at full radius reduction maintain a minimum pressure of 40 PSI to assure reliable operation.
