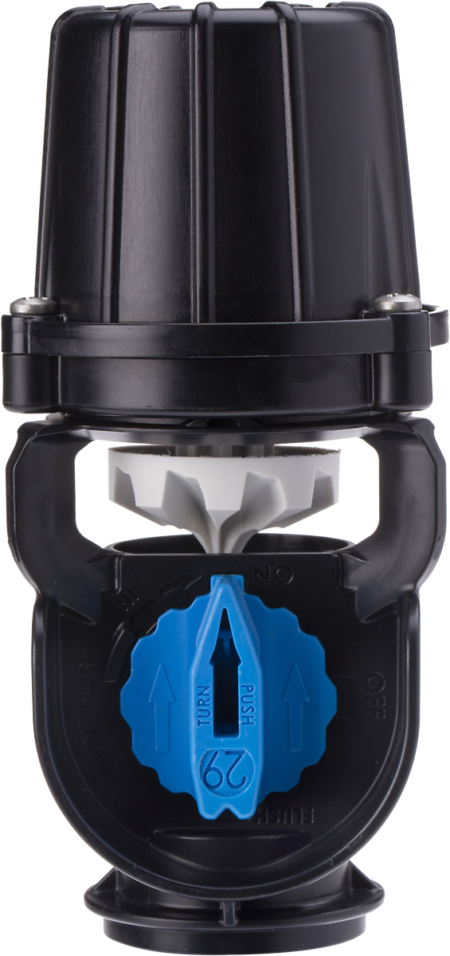

Orbitor FX

Field-proven, off-axis Orbitor technology provides a random droplet pattern in a compact, low-vibration design.

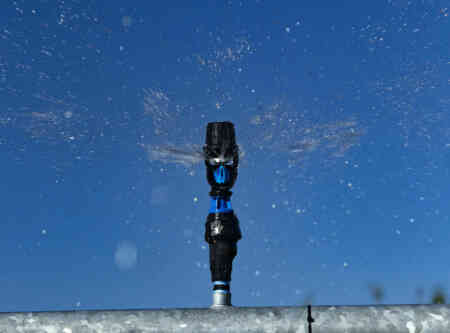

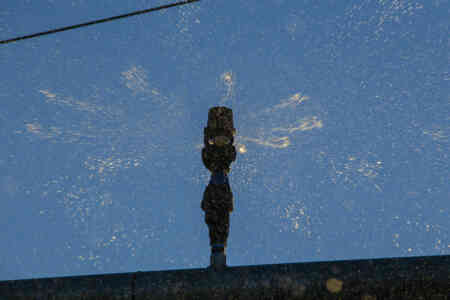

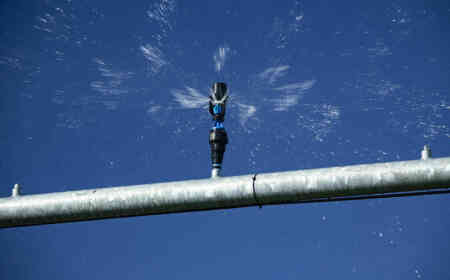

Nelson Irrigation's Orbitor FX, Up-Top Pivot Sprinkler creates random droplets

Specifications

  • Pressure: 6-10 psi (0.4-0.7 bar)
  • Diameter: 32-52 ft (9.8-15.8 m)
  • Nozzle Size: #12-50

Features

Up-top random droplets

The Orbitor FX is Nelson's newest pivot sprinkler. It makes the proven Orbitor technology available in an up-top option.

  • Engineered plate grooves reduce mist
  • Rain-like random droplets
  • Low, wind-fighting trajectory
  • 10 PSI recommended (#12-50 Nozzles) – Max. 52 ft (15.8 m) wetted diameter (preliminary)
  • 6 PSI optional (#16-50 Nozzles)
  • Use galvanized (maximum riser of 4 ft (1.2 m)) or proven plastic nipples (no PVC nipples)
  • Available only in 3030 Series

Press, Spin, Click

At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle.

  • Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
  • Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
  • Save Labor: 3NV systems are easier to install and maintain.
