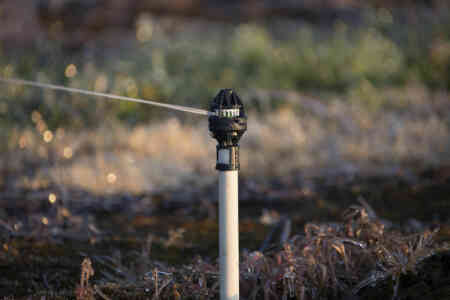

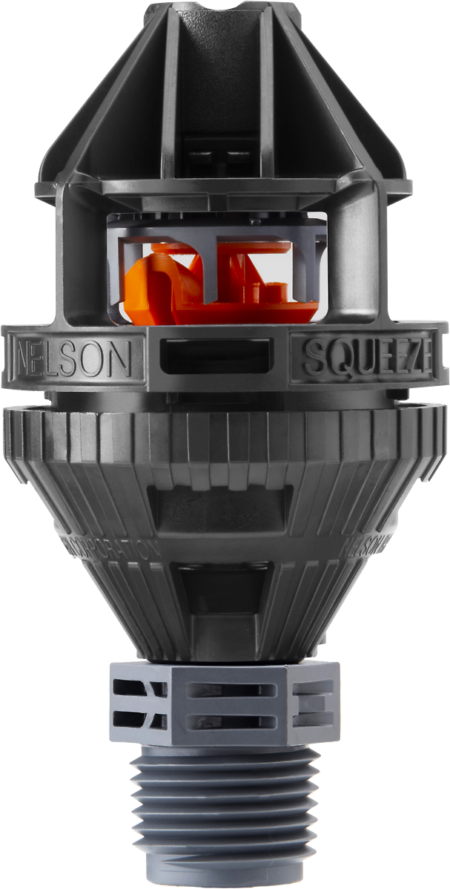

R2000 Rotator®

The R2000 Rotator uses proven Rotator® Technology to provide high uniformity without the riser vibration or splash down associated with impact sprinklers.

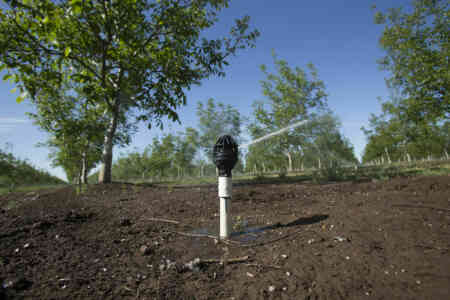

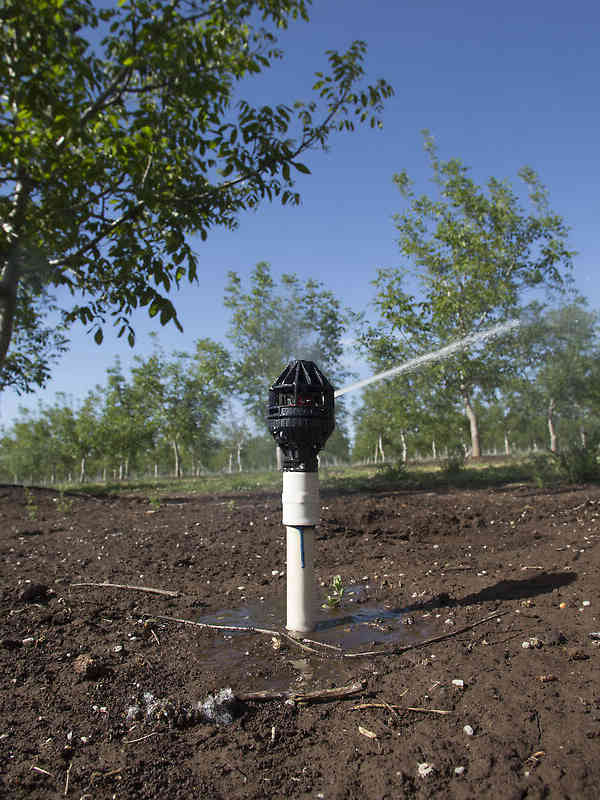

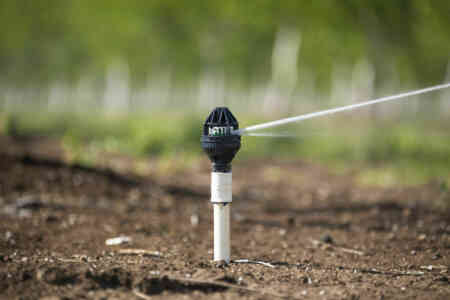

Nelson's R2000 Rotator® sprinkler irrigating tree nuts in California

Specifications

  • Flow: 0.7-3.5 gpm (150-792 lph)
  • Pressure: 30-60 psi (2-4 bar)
  • Radius: 21-37 ft (6.4-11.3 m)
  • Nozzle Size: #8.3-16 2TN, 0.85-2.5 2000FC

Features

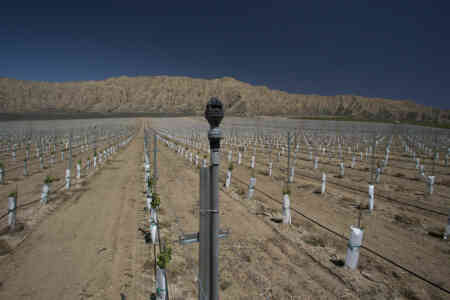

The simple, snap-apart design is durable, reliable, and easy to repair and clean. Choose from 15 different plate options to achieve optimal trajectory and throw characteristics. Applications include: under-tree irrigation and environmental control of tree fruit, vine, and tree nut crops — as well as overhead irrigation, cooling, and environmental control in tree, vine, small fruit, and nursery crops.

Choosing the correct plate for your application:

Plates are named after their nozzle size range (K1 - #8.3 / K2 - #9-10 / K3 - #11-12 / K4 - #13-14 / K5 - #15-16), and their trajectory (6°, 9°, 15°, or 24°).

Low trajectory gives low stream height to avoid things like shade structures and vegetation, but also has the lowest radius of throw. Stream and throw distance increase with trajectory.

The color band on the plate (white, black, or gray) matches the color of the sprinkler diffuser, which is designed with a specific number of "fingers" to provide optimum irrigation distribution uniformity.


Related Products

3/4 PVC-10 Stake & Feedtube Assembly (10 mm)

Durable PVC stake and 10 mm feedtube assembly for R10, R10T, R2000, R2000LP…

View Product

Part-Circle R2000WF/LP

The PC-R2000WF is a Part-Circle Rotator® that distributes water in a 180 degree…

View Product

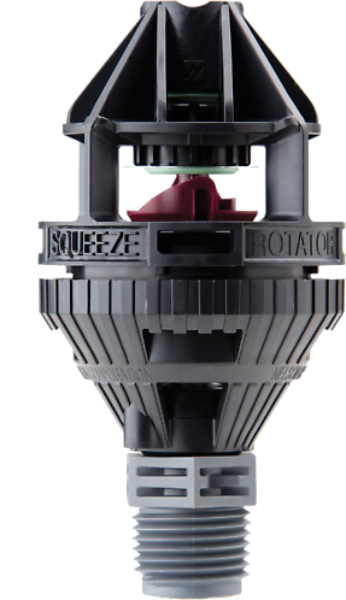

R2000 Cow Wash
