R2000WF Rotator®

The R2000WF "Windfighter" is the ideal product for germinating and irrigating high-value vegetables.

Nelson Irrigation's High Uniformity R2000WF Rotator® sprinkler

Specifications

  • Flow:: 0.9-5.7 gpm (204-1295 lph)
  • Radius:: 30-45 ft (9.1-13.7 m)
  • Pressure:: 25-65 psi (1.75-4.5 bar)
  • Nozzle Size:: #10-20 2TN

Features

The Windfighter forms a tight wind-penetrating stream that is systematically broken up by a diffuser, filling in the water pattern. Its sweeping action gently distributes water droplets to the ground preventing soil compaction. In high value vegetable crops, typical spacings include 30’ x 40’, 30’ x 33.3’ and sometimes 40’ x 40’.

The R2000WF pressure range is 40-65 psi (2.75-4.5 bar) while the R2000LP is 25-50 psi (1.75-3.5 bar). Both use the field-proven and precise 2TN nozzles.

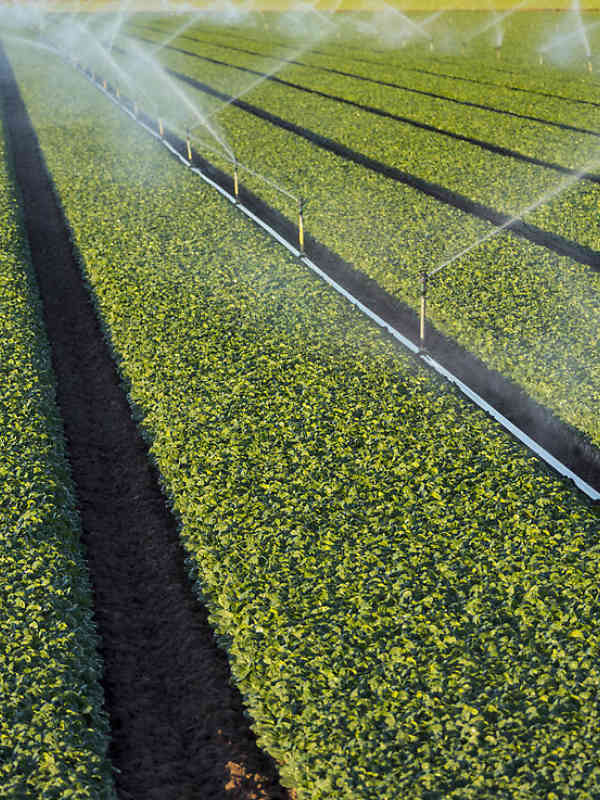

Use the R2000WF and R2000LP for overhead irrigation, cooling, and environmental control for nursery crops, tree, vine, small fruit, and berry crops. Also perfect for revegetation, mining, and other specialty uses. It can be used in conjunction with the MDC or MRDC drain checks to provide a water tight system with no drain down.
