R33-NV/R33LP-NV Rotator®

R33-NV & R33LP-NV Rotators continue the standard of performance and value from Nelson Irrigation and Rotator® Technology in a 3/4” sprinkler. The new 3NV incorporates a multi-function nozzle for nozzle flush, line flush, shutoff - all without removing the nozzle.

Specifications

  • Flow: 638-2524 lph
  • Pressure: 1.8-4.5 bar
  • Radius: 12-16 m
  • NozzleSize: 9/64"-7/32"

Features

The R33-NV uses Nelson’s proven Rotator® technology to provide longer throw distance, fight the wind and deliver uniform coverage. While brass sprinklers are prone to damage, clogging, and theft, the R33-NV is easy to clean, easy to repair, and costs less. The R33LP-NV is a low-pressure version of the R33-NV. The pressure range of the R33-NV is 40-65 PSI (2.75-4.5 bar), while the R33LP-NV is 25-50 PSI (1.75-3.5 bar).

Use the R33-NV and R33LP-NV for overhead irrigation, cooling, and environmental control for nursery crops, tree, vine, small fruit, and berry crops. It’s also perfect for revegetation, mining, and other specialty uses.

Plates

Gray 18
Turquoise 20
Yellow 22
Red 24
White 26
Blue 28

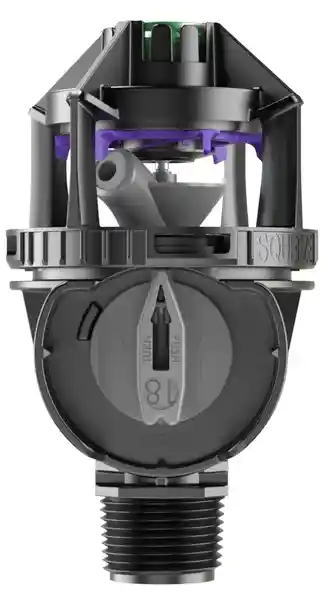

Gray 18

Flow: 660-1057 lph
Pressure: 1.75-4.5 bar
Radius: 12-13 m
Nozzle Size: #18 (9/64)
Gray 18

Turquoise 20

Flow: 806-1291 lph
Pressure: 1.75-4.5 bar
Radius: 12-13.75 m
Nozzle Size: #20 (5/32)
Turquoise 20

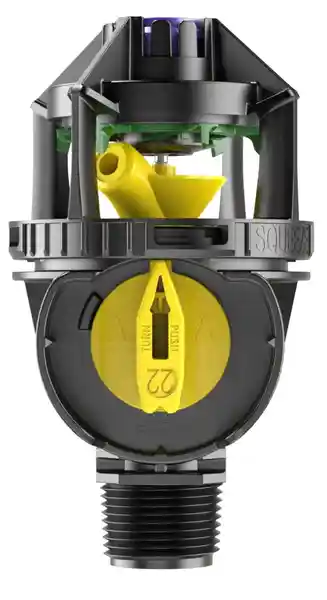

Yellow 22

Flow: 971-1553 lph
Pressure: 1.75-4.5 bar
Radius: 12.75-14.25 m
Nozzle Size: #22 (11/64)
Yellow 22

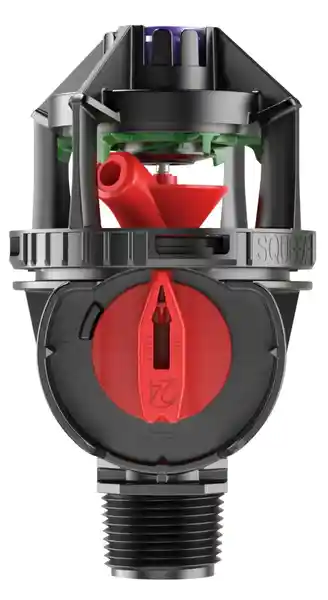

Red 24

Flow: 1147-1859 lph
Pressure: 1.75-4.5 bar
Radius: 13-14.75 m
Nozzle Size: #24 (3/16)
Red 24

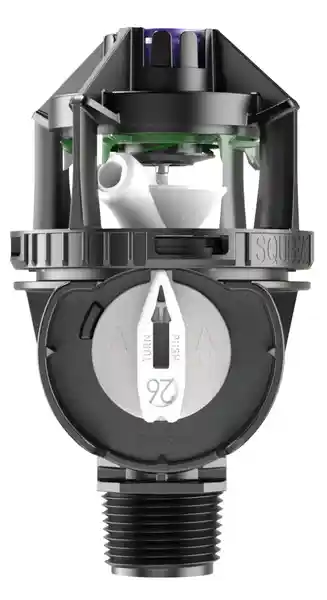

White 26

Flow: 1352-2154 lph
Pressure: 1.75-4.5 bar
Radius: 13.25-15.25 m
Nozzle Size: #26 (13/64)
White 26

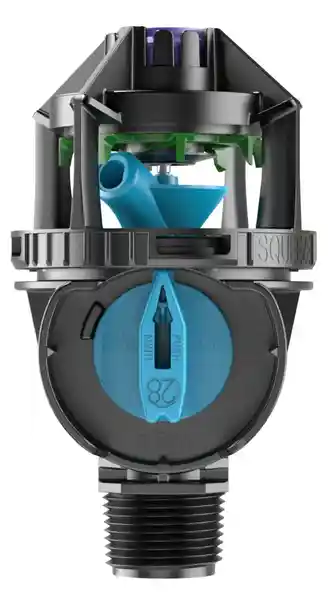

Blue 28

Flow: 1590-2574 lph
Pressure: 1.75-4.5 bar
Radius: 13.75-16 m
Nozzle Size: #28 (7/32)
Blue 28
