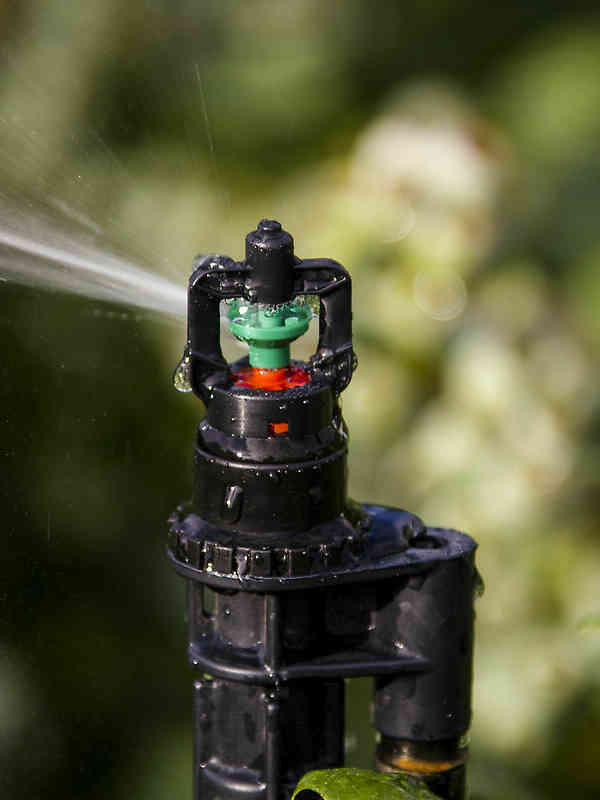

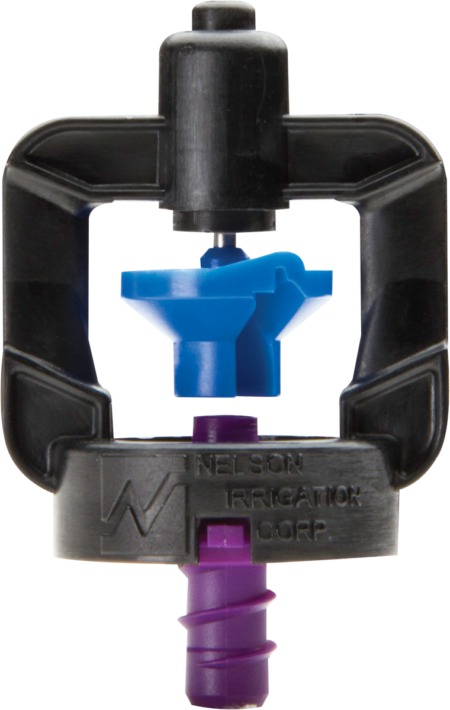

R5 Rotator®

The R5 Rotator® is a micro sprinkler for Full Coverage Irrigation.

R10 Rotator

Specifications

  • Flow: 9-29 GPH (34-110 lph)
  • Pressure: 15-40 psi (1-2.75 bar)
  • Radius: 7-18 ft (2.1-5.5 m)
  • Nozzle Size: #35-#50, 8.5-24 5FC

Features

It has higher uniformity, greater distance of throw, and provides better infiltration than comparable micro sprays or spinners. The flow control nozzle option is fully flow regulating as low as 15 psi (1 bar), while pressure compensation in other micro sprinklers begins to function at higher pressures. Low pressure options and a wide range of nozzles and accessories enable the installation of the R5 into any type of micro irrigation system.


Related Products

FT-01 Stake & Feedtube Assembly (4 mm)

R5 Rotator® (upright mount) sprinkler stake and feedtube assembly.

View Product

FT2 Feedtube Assembly (5 mm)

Feedtube Assembly for the R5 & R10 Rotator® sprinklers.

View Product

FT3 Stake & Feedtube Assembly (5 mm)

This simple, cost-effective stake and feedtube option for R5 and R10 Rotator®…

View Product

R5 Acme Adapter

Connect the R5 sprinkler to Acme Adapter threads.

R5 Deflector Cap

Reduce the R5 radius down to 3-4 feet (0.9-1.2 m) for watering newly planted trees.

R5 Single-Sided Stream Splitter

Protects tree trunks — use when R5 Rotator® Sprinklers are mounted 2-4 feet (0.6-1.2 m) from a tree.

R5 Double-Sided Stream Splitter

Protects tree trunks — use when R5 Rotator® Sprinklers are centered between two trees.

1/2" Acme Cap

Connects to 1/2" Male ACME thread and acts as a shutoff cap.

Female Acme x 1/2” PVC Spigot

Enables easy attachment of a 1/2" PVC riser to a male acme fitting, for example, in detachable risers.
