Nelson Irrigation Australia

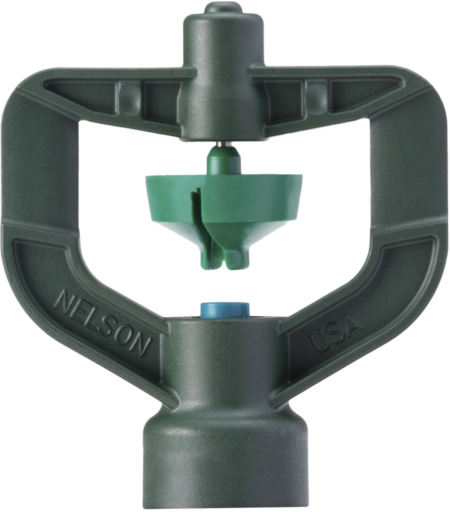

S10 Spinner

The S10 Spinner for mining, nursery and greenhouse applications is a unique little sprinkler that evenly distributes a wide range of flow like a gentle rain.

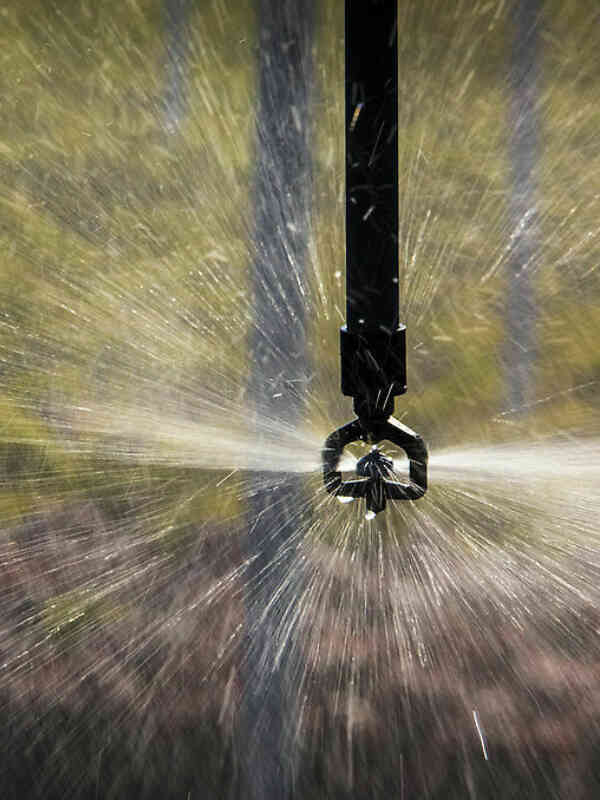

Close up of Nelson Irrigation's S10 Spinner


  • Flow: 0.8-5 gpm (187-1144 lph)
  • Pressure: 20-50 psi (1.5-3.5 bar)
  • Radius: 13-22 ft (4-6.7 m)


With its high-flow capacity, high uniformity, and greater radius you will need far less S10 Spinners than traditionally needed in similar applications. Space the S10 from 16 x 16 to 26 x 26 feet (5 x 5 to 8 x 8 meters) depending on your conditions. Closer spacings will normally deliver the best uniformity, especially in the wind. Three plate options are available for high trajectory, low trajectory, or flat trajectory performance.

  • Tough, durable, and reliable build.
  • High uniformity.
  • Easy-clean, color-coded nozzles.
  • PVC or threaded adapter options.
  • Mini Regulator Drain Check option.
  • FT4 or FT5 feedtube options for easy connection to polyethylene pipe.
  • For inverted installations on flexible drops, use a 10 mm x 36" feedtube (#11454-036) with 3/4" PVC x 1/2" ACME adapter (#11429). Install short length of 3/4" Sched. 40 PVC to stabilize the sprinkler.
