Spinner

The Spinner is a faster rotating sprinkler that is great for sensitive crops & soils.

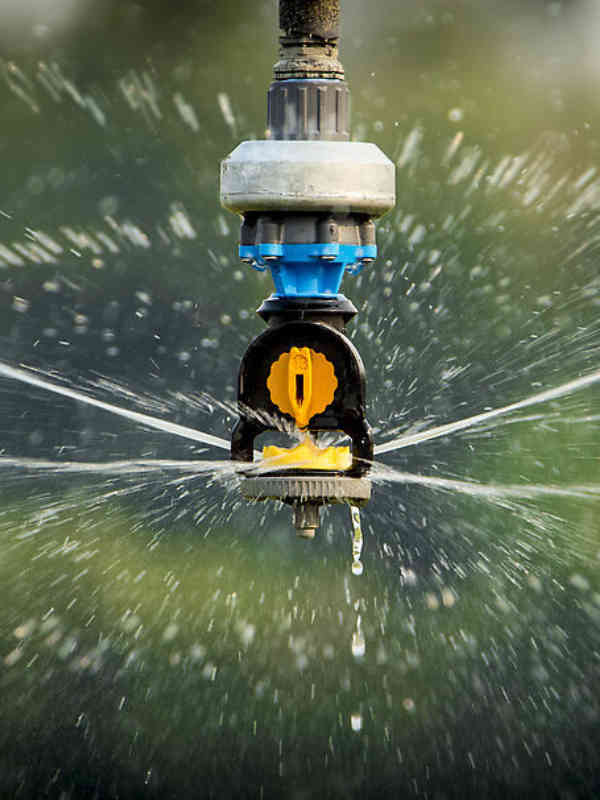

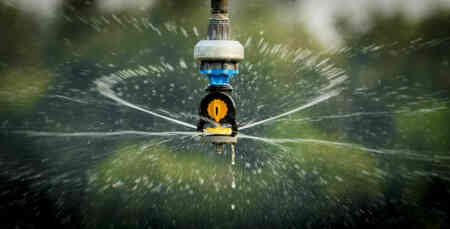

Nelson's S3030 Spinner with Yellow Wind-fighting Plate

Specifications

  • Pressure: 0.7-1.4 bar
  • Diameter: 9.8-17 m
  • NozzleSize: #14-50

Features

Gentle Rain at Low Pressure

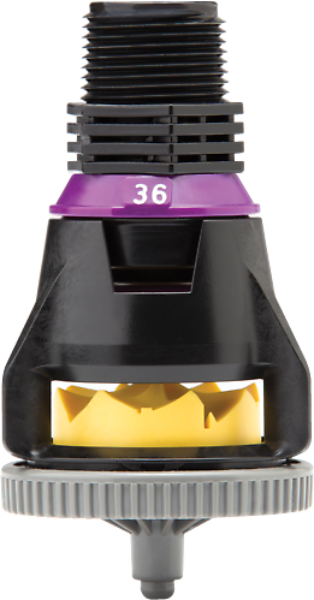

The free-spinning action of the S3000 & S3030 Spinner provides a gentle, rain-like droplet for sensitive soils and crops.

Superior Uniformity at Low Pressure

A low pressure alternative to fixed spray-heads, the Spinner provides higher uniformity with better overlap and lower application rates.

No Mounting Restrictions

The Spinner operates without vibration. Retrofit on rigid, semi-rigid, or flexible drop hose assemblies.

Press, Spin, Click

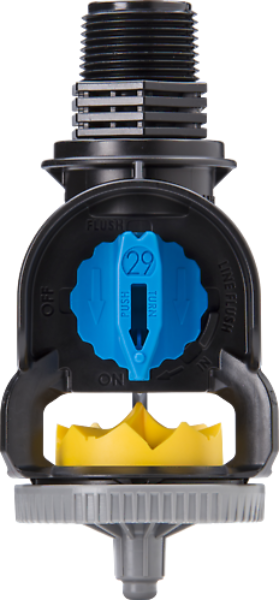

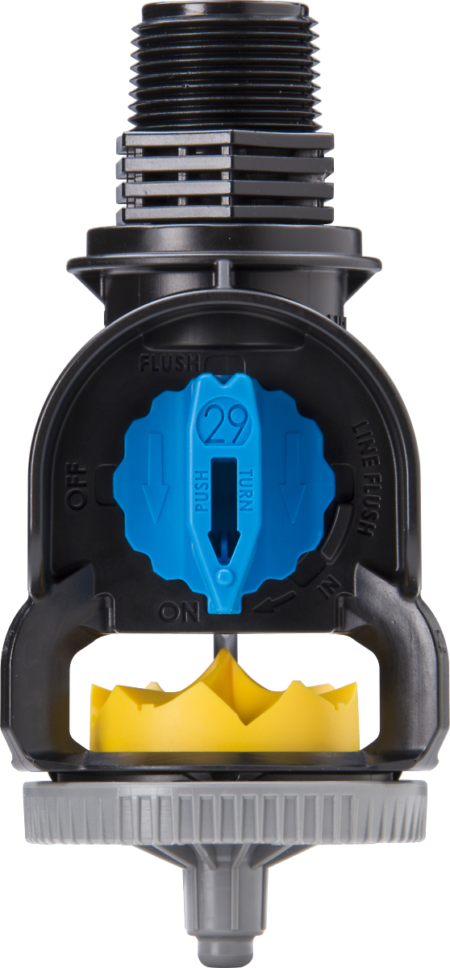

At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle.

  • Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
  • Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
  • Save Labor: 3NV systems are easier to install and maintain.
  • Integrated: The modular design works with existing 3000 Series cap, plate, fittings, and regulators. You simply need a new nozzle and body to get the full benefits of the 3030 Series.

Plates

Purple D6-20°
Yellow D8-21°
Beige Small Nozzle

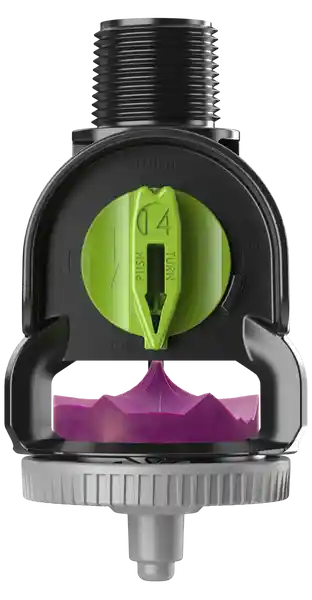

Purple D6-20°

Great for sensitive crops: Avoid over- or under-watering and ensure high yield and grade with this plate’s maximum uniformity.

Get water in the ground: With a high trajectory and fast rotation speed, this plate balances small droplets and a large throw radius to improve water infiltration.

Diameter: 9.8-17 m
Pressure: 0.7-1.4 bar
Nozzle Size: #14-50
Purple D6-20°

Yellow D8-21°

Best of both worlds: Multi-trajectory streams create larger droplets to throw far, and smaller droplets for coverage near the sprinkler.

Versatile mount options: Though its rain-like pattern is similar to that of the Orbitor, it has less vibration and can be mounted on any style drop—even a rigid mount.

Diameter: 10.4-16.5 m
Pressure: 0.7-1.4 bar
Nozzle Size: #14-50
Yellow D8-21°

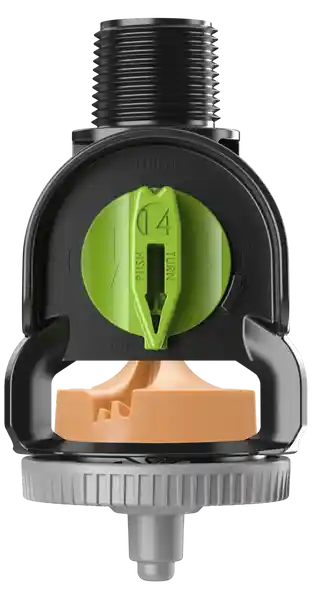

Beige Small Nozzle

Prevent over-watering: Over-watering in the first spans of a pivot is common with many sprinkler types due to minimum nozzle restrictions. This single stream technology allows for light application with low pressure and small nozzles.

Note: The beige plate should be used on flexible hose drops, or those with at least 1 ft (0.3 m) of hose. The smaller nozzles will be more susceptible to plugging.

Diameter: 9.8-12.2 m
Pressure: 0.7-1 bar
Nozzle Size: #10-15
Beige Small Nozzle
