ST-90-B

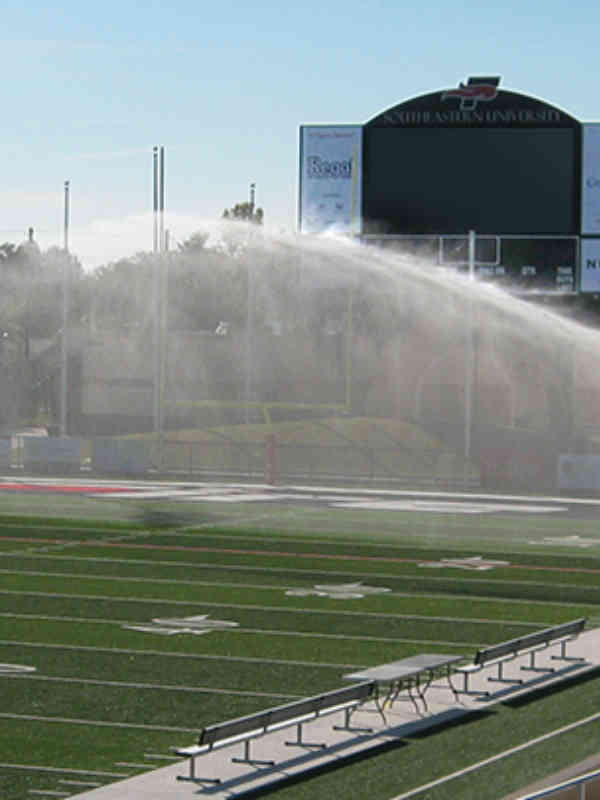

The ST-90-B synthetic turf rotor is designed for installation in natural turf adjacent to the playing surface — the perfect solution for small and midsize fields.

The ST-90-B synthetic turf rotor is designed for installation in natural turf adjacent to the playing surface — the perfect solution for small and midsize fields.

Specifications

  • Application: Synthetic Sports Turf Fields
  • Radius: 31.4 to 36.6 m
  • Flow: 16.9 to 20.9 m³/hr
  • Flow: 282.0 to 348 l/min
  • Inlet Size: 40 mm BSP

Features

The perfect solution for small to midsize synthetic turf field layouts. Designed for installation adjacent to the synthetic field, the ST-90-B rotor provides a cost-competitive solution with a radius range up to 36.5 m.

Key Benefits

  • Flexible arc adjustment from 40° to 360° offers narrow to wide coverage
  • QuickCheck™ arc mechanism lets you verify the arc setting without waiting for the sprinkler to finish its rotation
  • Through-the-top arc adjustment allows you to easily set the arc at the sprinkler head
  • Water-lubricated gear drive delivers reliable operation without clogging
  • Factory-installed rubber logo cap increases athlete safety on the field
  • Nozzle trajectory: 22.5°
