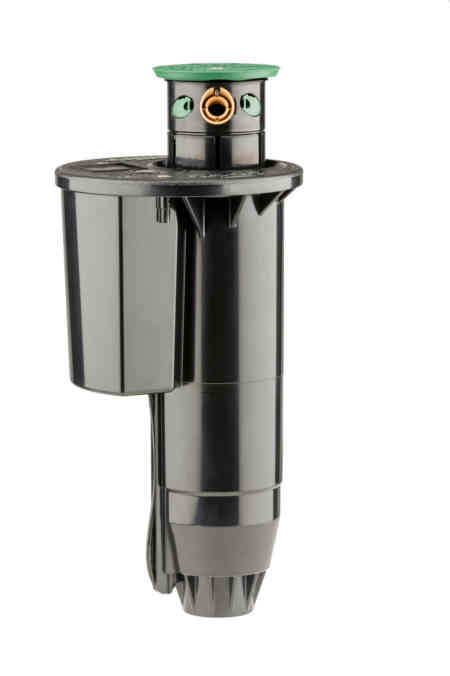

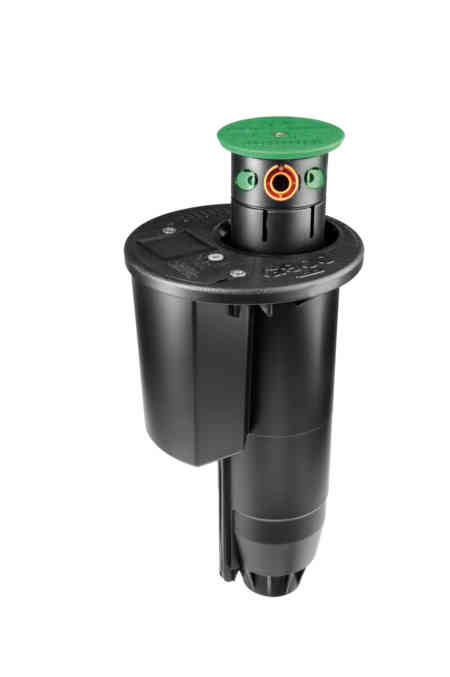

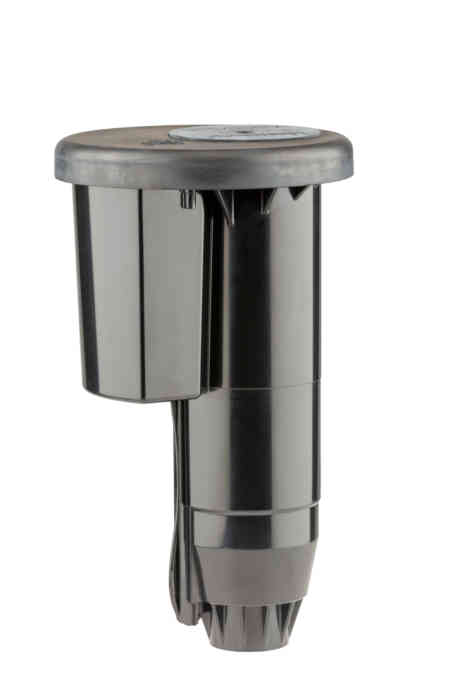

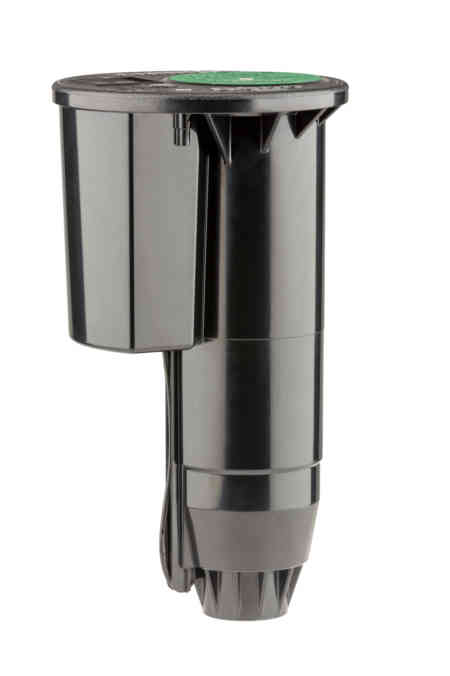

STG-900

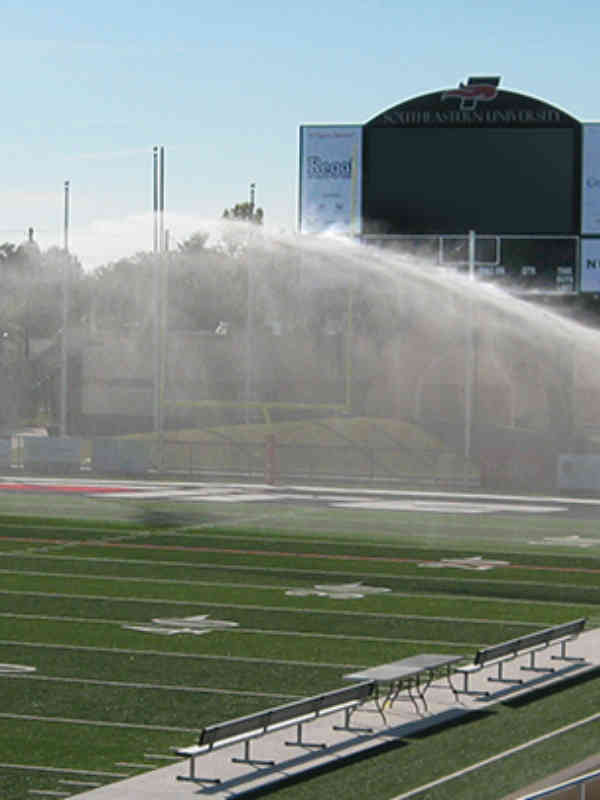

Top-quality STG-900 long-range rotors are specially designed to extend the life of small-to-midsize synthetic turf sports fields.
Top-quality STG-900 long-range rotors are specially designed to extend the life of small to midsize synthetic turf sports fields.

Specifications

  • Application: Synthetic Turf Sports Fields
  • Radius: 103' to 120'
  • Flow: 74.5 to 92.0 GPM
  • Flow: 282.0 to 348 l/min
  • Inlet Size: 40 mm Acme

Features

Designed for small-to-midsize synthetic turf field layouts, the STG-900 Rotor offers a radius range of up to 36.6 m. This versatile option can be installed in a vault system within the synthetic field.

Key Benefits

  • Flexible arc adjustment from 40° to 360° offers narrow-to-wide coverage
  • QuickCheck™ Arc Mechanism lets you verify the arc setting without waiting for the sprinkler to finish its rotation

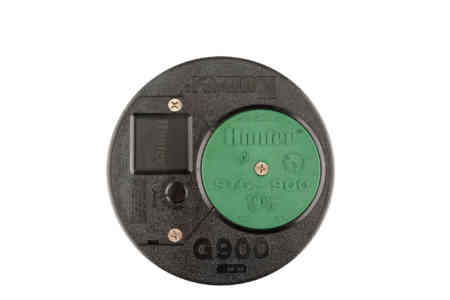

  • Through-the-top arc adjustment allows you to easily set the arc at the sprinkler head
  • Water-lubricated gear drive delivers reliable operation without clogging

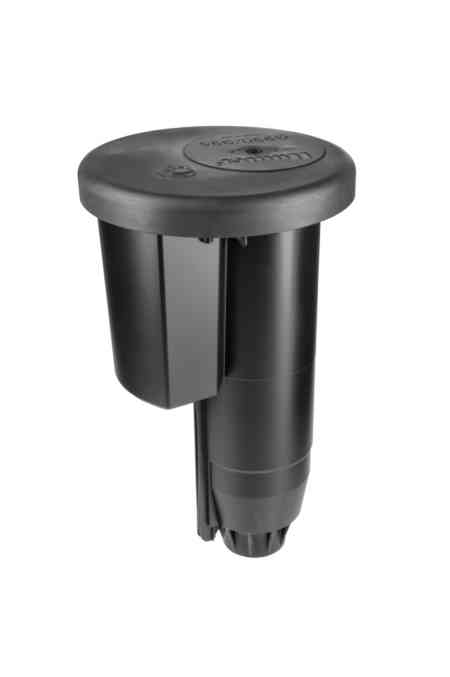

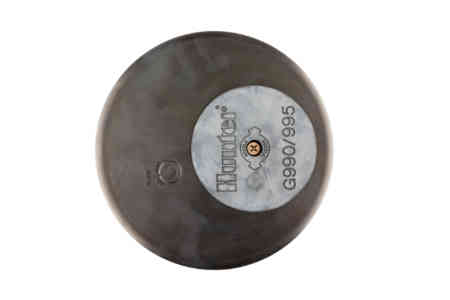

  • User-installed rubber logo cap increases athlete safety on the field
  • Nozzle trajectory: 22.5°
