Weights

In-line and modular weights are a great solution for keeping center pivot sprinklers from drifting on hose drop assemblies.

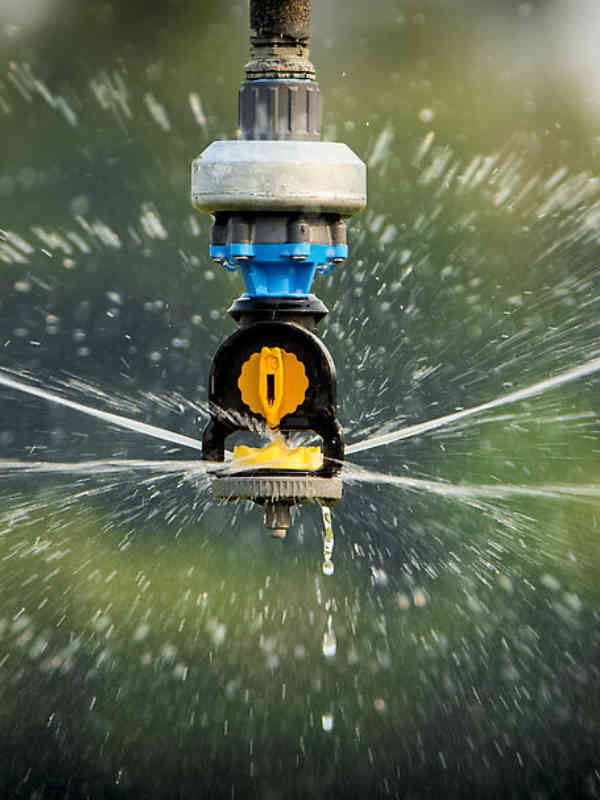

Nelson's S3030 Spinner with Yellow Wind-fighting Plate

Features

Nelson Irrigation offers several weight options with different advantages.

Modular Weight

This 1 lb reusable weight is placed on the regulator body (or sprinkler body when not using regulator).

Slim Weight

The in-line hose barb x MNPT “slim” weight is a low profile zinc weight that fits directly into a flexible drop hose secured with a clamp, above a Nelson regulator and/or sprinkler. This provides a reusable weight option for the plastic cover versions of the O3000 and O3030 at 6, 10 or 15 psi (0.4, 0.7 or 1 bar) where the regulator must be installed directly onto the slim weight. No additional weight is allowed with the Orbitor. Available in 0.85 lb or 1 lb versions.

Coil Weight

The coil weight weighs more than standard pivot drop weights (1.25 lbs/0.57 kg). Save a fitting with integrated Hose Barb x ¾” MNPT connection. The plastic cover secures over coil and prevents theft by hiding any shiny metal. Same mounting restrictions as the slim weight.


Related Products

1 lb. Modular Weight

Place the weight on the regulator body (or sprinkler body when not using regulator) to keep sprinklers from drifting on hose drop assemblies.

Slim Weight

The in-line “slim” weight is for use with 3000 Series & 3030 Series Sprinklers. This low profile zinc weight fits directly into a flexible drop hose secured with a clamp, above a Nelson regulator and/or sprinkler. This includes the plastic cover versions of the O3000 and O3030 at 6, 10 or 15 psi (0.4, 0.7 or 1 bar) where the regulator must be installed directly onto the slim weight. No additional weight is allowed with the Orbitor.

Coil Weight

The coil weight has more weight than standard pivot drop weights (1.25 pounds /0.57 kg). Save a fitting with integrated Hose Barb x ¾” MNPT connection and special bonus - no shiny metal helps prevent theft!Plastic cover secures over coil. Same mounting restrictions as the slim weight.
