Spike Marker Fixing Kit

Tempo Spike Marker “duct fixing kit” containing a soft “bracket” and 225 mm nylon cable tie suitable for duct diameters up to 50 mm (2”)

Features

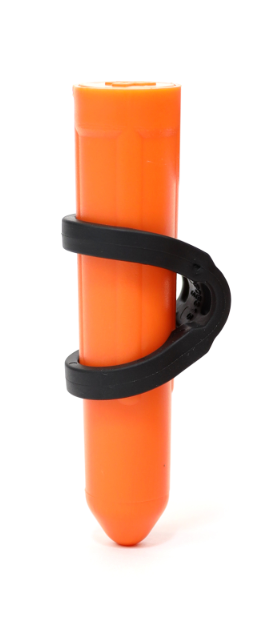

The SMFIX is a little rubber figure-8 adapter which grips around the Spike Marker and comes with a cable tie or "zip tie" so that it can loop through the adapter and around a pipe or whatever the Spike can be attached to.

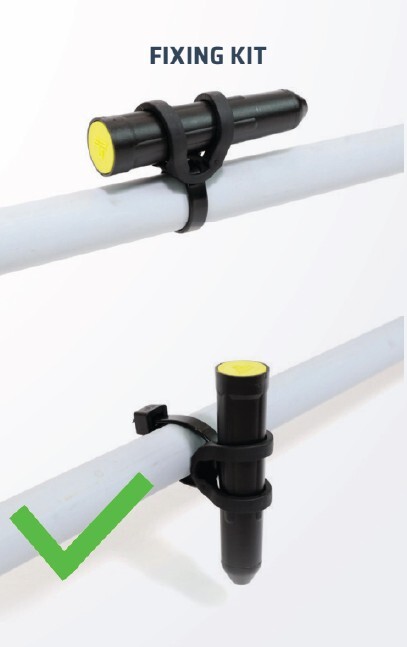

These allow the Spike to be attached either horizontally or vertically:


The best placement for maximum detection range is the vertical.

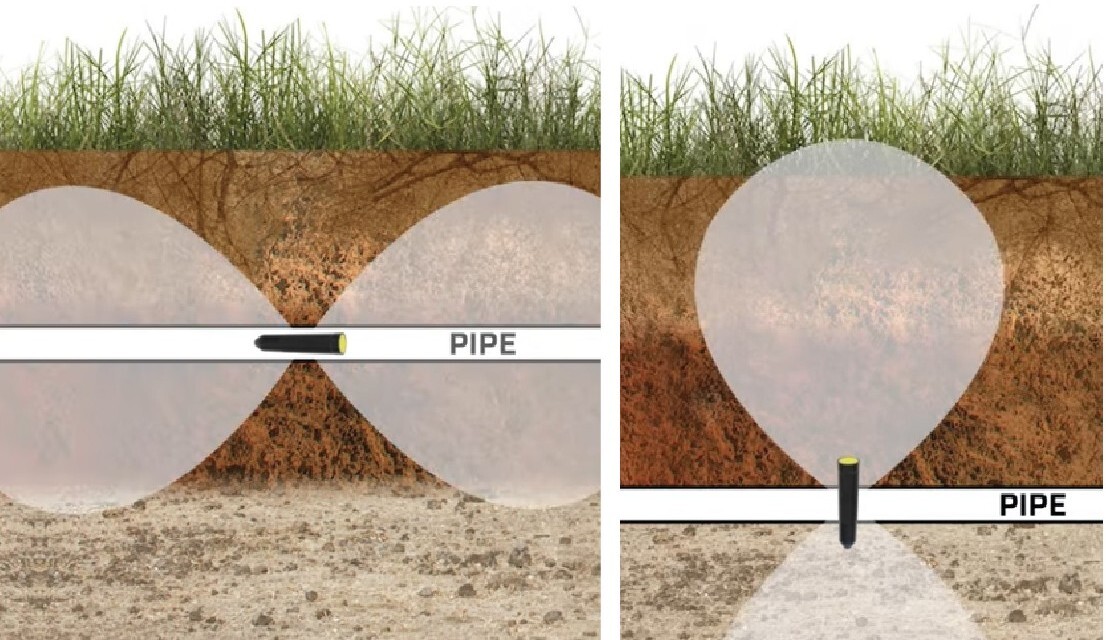

Vertical orientation gets you a single "hot spot" with 0.9m of range while horizontal orientation gives a detection field on either end that can be detected from around 0.6m above
